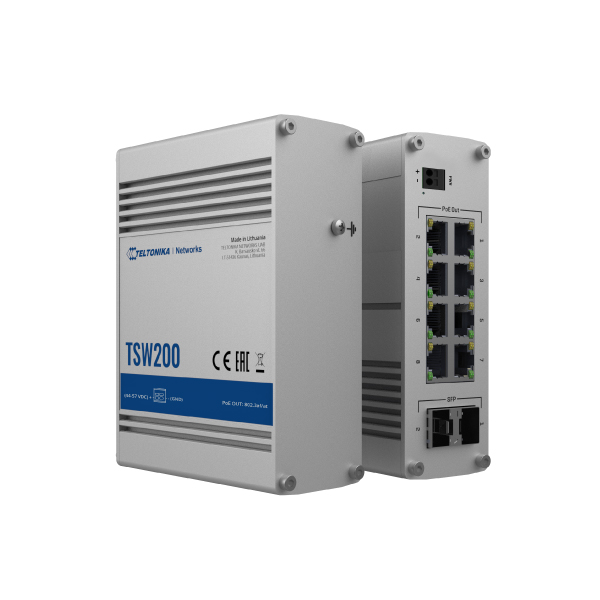

Teltonika INDUSTRIAL UNMANAGED POE+ SWITCH Model: TSW200

Genuine Product Fast Delivery Easy Returns

POE+ : 8x PoE ports with 802.3af and 802.3at support

SFP : 2 x SFP ports for long-range Fiber-optic communication

ETHERNET : 8 x Gigabit Ethernet with speeds up to 1000 Mbps

POWER BUDGET : Total power budget at PSE up to 240 W

DURABILITY : Rugged aluminium housing

MOUNTING : DIN rail and surface mounting options

ETHERNET
LAN	8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber	2 x SFP ports
PoE
PoE ports	Port 1 - 8
PoE standards	802.3af and 802.3at
PoE Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)	20 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
POWER
Connector	2 pin industrial DC power socket
Input voltage range	7-57 VDC
Input voltage range for PoE	44-57 VDC
Power consumption (idle/max no PoE/max)	1,81 W/5.5 W/245.5 W

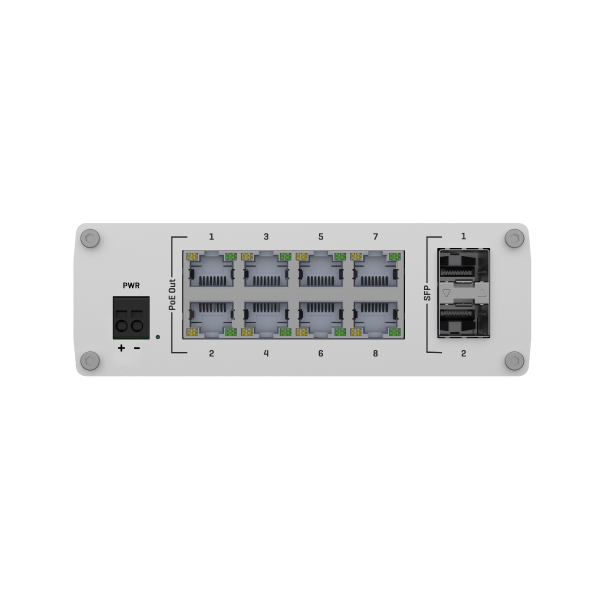

PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet	8 x RJ45 ports, 10/100/1000 Mbps
Fiber	2 x SFP ports
Status LED’s	1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power	1 x 2 pin industrial DC power socket
Ground	1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material	Full aluminum housing
Dimensions (W x H x D)	132 x 44.2 x 95.1 mm
Weight	456 g
Mounting	DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40 °C to +75 °C
Operating humidity	10 % to 90 % non condensing
Ingress Protection Rating	IP30

USE CASE

1) LARGE-SCALE VIDEO SURVEILLANCE WITH REMOTE ACCESS

Surveillance solutions are a growing market. If we look around public spaces, more and more cameras are popping up on the streets, shopping malls, parking lots, leisure areas, and even around private buildings. Over the last couple of decades, security surveillance has become a hot topic in the public and private sectors. Data from 40 years’ worth of research suggests that having a CCTV system notably decreases crime rates, especially in car parks and residential areas. They are also an instrumental tool in revealing the crimes that have occurred.

2) LONG-DISTANCE CONNECTIVITY FOR PARKING TICKET MACHINES

Surface parking lots cover more than 5% of all urban space in the USA alone. With a big part of the population owning personal cars, the parking lots can become quite chaotic without monitoring. Parking ticket machines help manage those spaces by limiting the parking time available for each vehicle. However, for this system to function correctly across the city, a reliable internet connection is a must.
