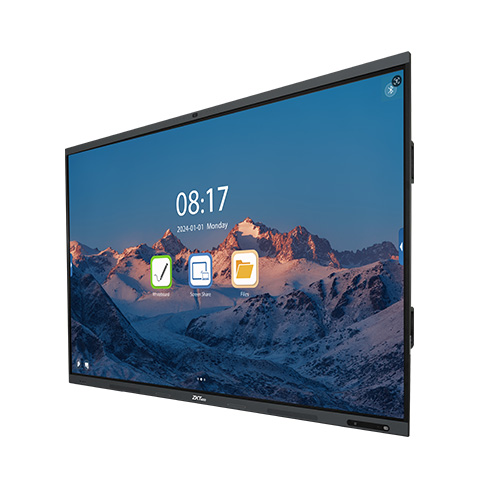

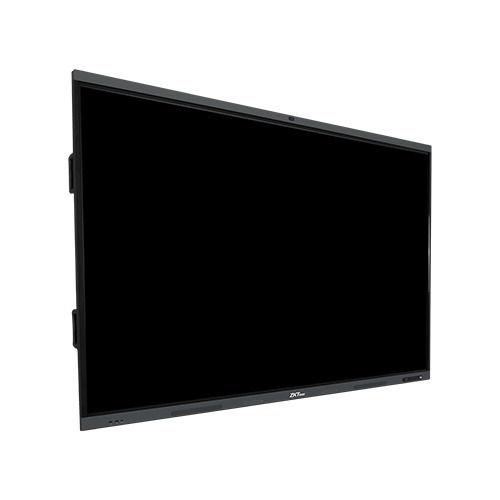

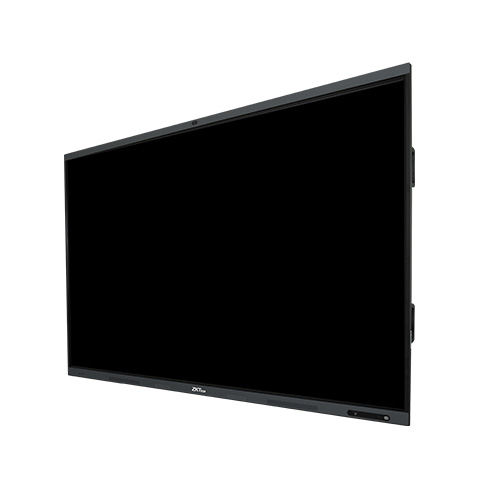

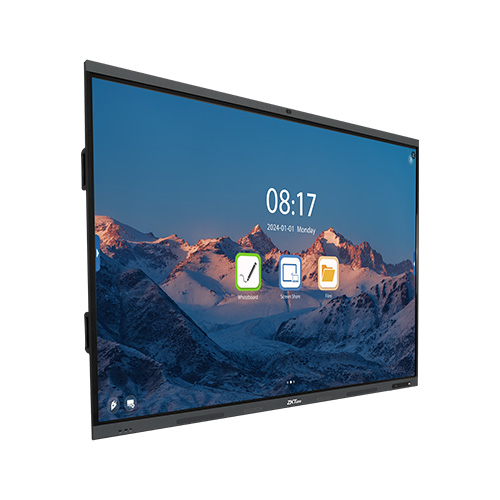

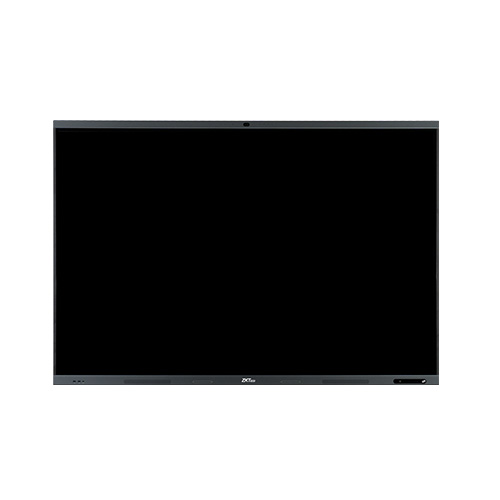

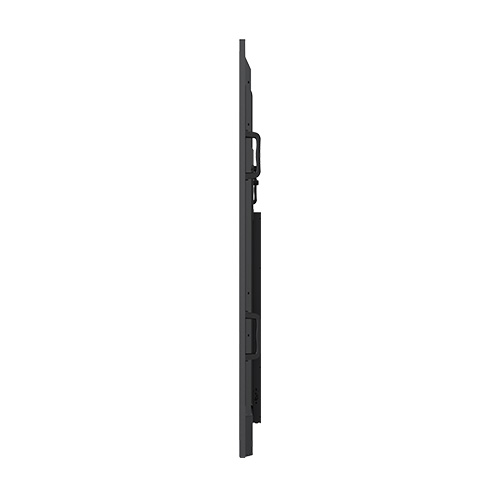

ZKTeco SC02-I375A 75 Inch 4K UHD Interactive Flat Panel Display
Contact us for pricing
Product Details
Key
Features
Model: SC02-I375A
75" UHD 4K Display with Resolution of 3840×2160
RAM: 8GB, Built-in Storage: 128GB
Speaker: Built-in 2x 20W+1x 20W Loudspeaker
Built-in 48 MP Camera, Advanced Infrared Touch Technology
|
Specification |
Detail |
|
Model |
SC02-I375A |
|
Screen Size |
75″ |
|
Panel Type |
ADS |
|
Backlight |
D-LED |
|
Backlight Lifetime |
~50,000 hours |
|
Native Resolution |
3840 × 2160 (4K UHD) |
|
Brightness |
450 cd/m² (typical) |
|
Contrast Ratio |
1200:1 (typical) |
|
Response Time |
8 ms (typical) |
|
Refresh Rate |
60 Hz |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
178° horizontal / 178° vertical |
|
Display Colors |
1.07 Billion (8-bit + FRC) |
|
Bonding Technology |
Zero-gap bonding between tempered
glass and screen |
|
Touch Technology |
Advanced infrared touch |
|
Touch Points |
Up to 50 multi-touch points |
|
Touch Response Time |
≤ 3 ms (single); ≤ 3 ms (multi) |
|
Touch Accuracy |
1 mm in 90% of the central area |
|
Glass Hardness |
9H pencil hardness; 7 Mohs
tempered glass |
|
Anti‑Glare Feature |
High transparency, smooth,
anti-glare surface |
|
Writing Height |
≤ 1 mm |
|
CPU |
Quad-core A73 + Quad-core A53 |
|
GPU |
Mali G52 MP8 |
|
RAM |
8 GB |
|
Storage (ROM) |
128 GB |
|
Operating System |
Android 14 / Windows 11 (optional) |
|
HDMI / Video Connectivity |
HDMI OUT ×1, HDMI IN (ARC) ×1,
HDMI IN (CEC) ×2, VGA ×1 |
|
Audio Connectivity |
Audio In ×1, Audio Out ×1 |
|
LAN / Network |
LAN IN/OUT ×2 |
|
USB Ports |
USB 3.0 ×2, USB 2.0 ×1, Touch-USB
×2 |
|
RS‑232 |
1 port |
|
Wireless |
Wi-Fi 6 (802.11 ax/ac/b/g/n),
Bluetooth 5.0 |
|
NFC / RFID |
ISO / IEC 14443 A & B support |
|
Camera |
Built-in 48 MP |
|
Microphones |
8-mic array with noise‑reduction,
AEC & AGC support |
|
Speakers |
2 × 20 W + 1 × 20 W built-in |
|
Dimensions (W × D × H) |
1705 × 86.9 × 1036 mm |
|
Weight |
53.95 kg |
|
Power Consumption |
215 W (typical), standby ≤ 0.5 W;
Power supply: 100–240V AC, 50/60 Hz |
|
Operating Conditions |
Temperature: 0°C–40°C; Humidity:
20%–80% RH |
|
Storage Conditions |
Temperature: 10°C–60°C; Humidity:
10%–60% RH |
|
Build / Case Material |
Aluminium alloy + sheet metal;
Blue-grey color |
|
Warranty |
1 year |
|
Included Accessories |
Power cable, USB cable, HDMI
cable, 2 stylus pens, eraser, remote, wall mount |
