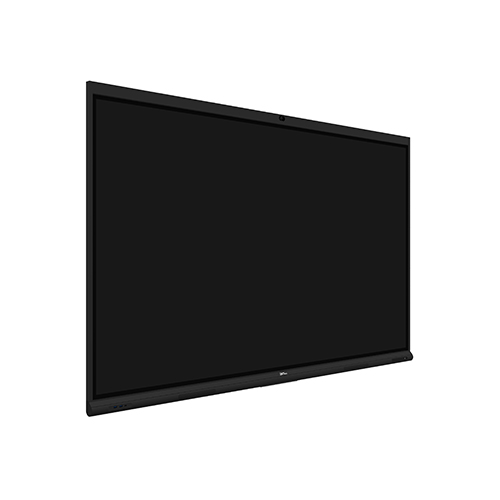

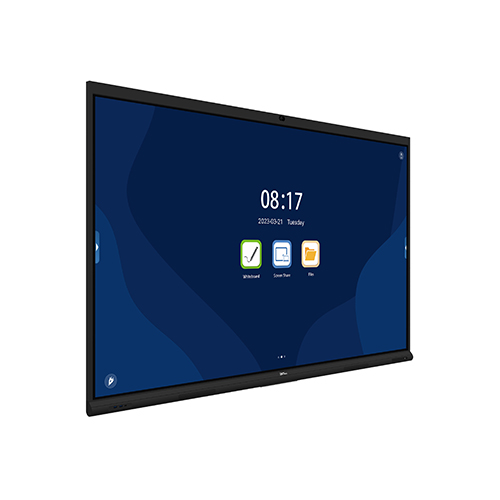

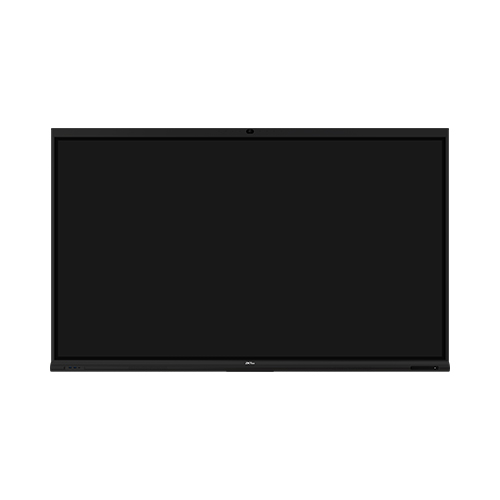

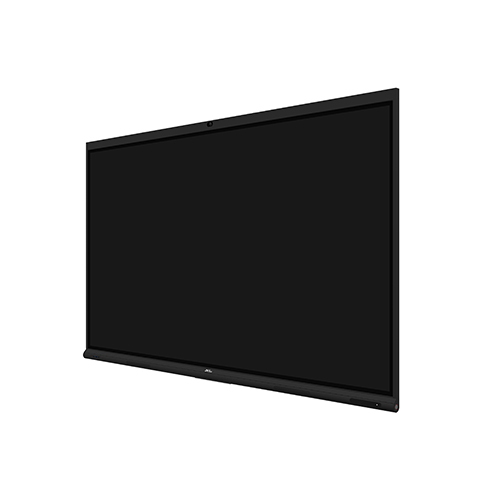

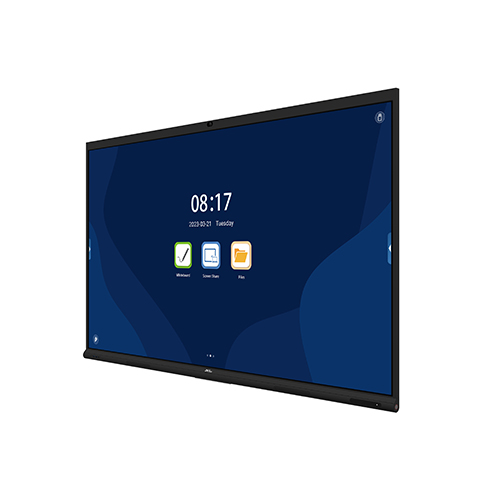

ZKTeco ZK-IWB86BP 86 Inch 4K UHD Interactive Flat Panel Display
Contact us for pricing
Product Details
Key Features
Model: ZK-IWB86BP
Display: 86" 4K (3840 x
2160)
Brightness: 350 nits,
Contrast: 1,200:1
Dual System (Windows
optional), Wireless projection
Built-in 13MP Camera, 6
Microphone Array, Split Screen
|
Specification |
Detail |
|
Model |
ZK‑IWB86BP |
|
Screen Size |
86″ |
|
Panel / Backlight |
IPS panel, D‑LED backlight |
|
Native Resolution |
3840 × 2160 (4K UHD) |
|
Brightness (Typical) |
350 nits |
|
Contrast Ratio |
1200:1 (typical) |
|
Response Time |
≤ 10 ms |
|
Refresh Rate |
60 Hz |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
178° horizontal / 178° vertical |
|
Display Colors |
1.07 Billion (10-bit) |
|
Touch Technology |
Advanced infrared touch |
|
Touch Points |
20 multi-touch (Android), 40
multi-touch (Windows) |
|
Touch Response Time |
≤ 10 ms |
|
Touch Accuracy |
±1 mm over 90% of central area |
|
Writing Height |
2.0 mm |
|
Touch Resolution |
32768 × 32768 |
|
Minimum Touch Object |
Single ≥ 1.6 mm; Multi ≥ 2.0 mm |
|
Pen Recognition |
4 grades: 3 mm / 8 mm / 12 mm / 25
mm |
|
Operating Systems |
Android 11.0, Windows (optional) |
|
CPU |
Quad-core Cortex A55 |
|
GPU |
Mali G52 MP2 |
|
RAM |
4 GB (8 GB optional) |
|
Storage (ROM) |
32 GB (64 GB optional) |
|
HDMI / Video Inputs |
HDMI IN ×3, HDMI OUT ×1, VGA ×1 |
|
USB Ports |
USB 2.0 ×1, USB 3.0 ×4, Type-C ×1 |
|
LAN / Network |
RJ45 IN ×1, RJ45 OUT ×1 |
|
RS-232 |
1 port |
|
Audio Ports |
Audio IN ×1, Audio OUT ×1, SPDIF
×1 |
|
Camera |
13 MP built-in, auto-framing, 92°
× 60° FOV |
|
Microphone |
6-mic array, echo cancellation,
noise filtering, auto gain |
|
Speakers |
2 × 16 W (180 Hz–20 kHz) |
|
Power Consumption |
550 W (typical) |
|
Power Supply |
AC 100–240 V, 50/60 Hz; standby
≤ 0.5 W |
|
Operating Conditions |
Temperature: 0°C–40°C; Humidity:
10%–90% RH |
|
Storage Conditions |
Temperature: –20°C–60°C; Humidity:
10%–90% RH |
|
Build / Material |
Aluminum alloy + engineered sheet
metal; black finish |
|
Weight |
61.65 kg |
|
Warranty / Package |
1 year; includes power cable,
stylus pens, wall mount, user manual |
