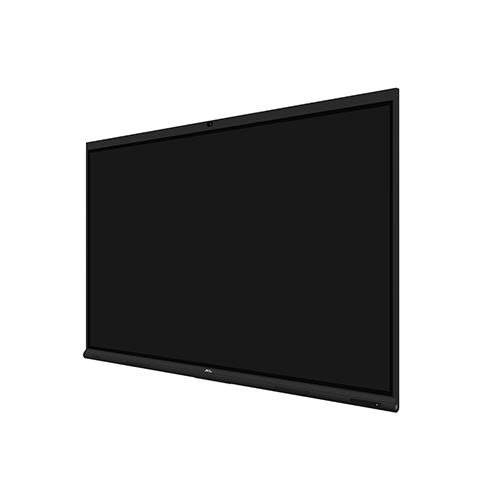

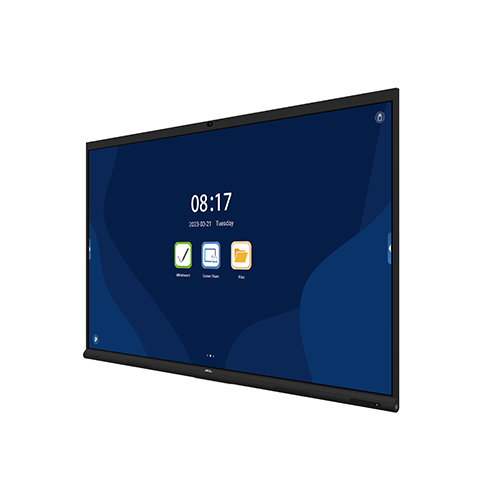

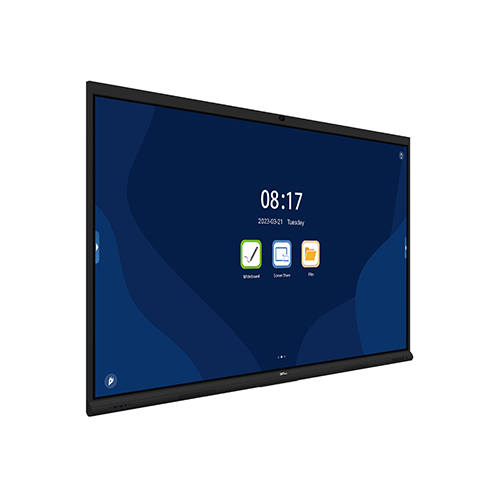

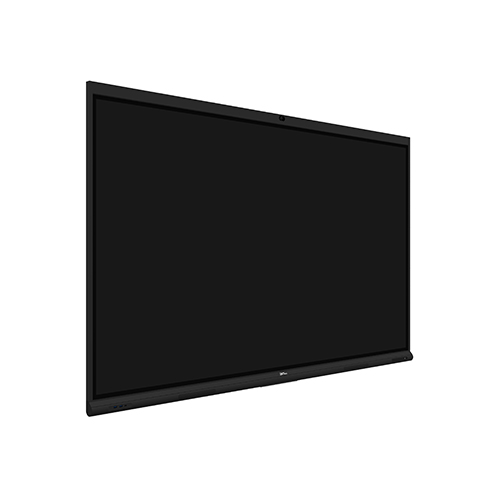

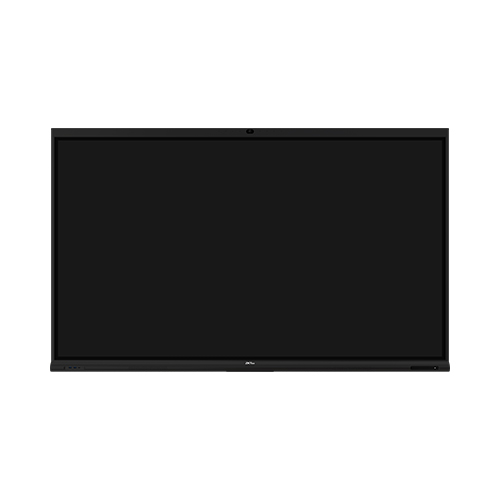

ZKTeco ZK-IWB75BP 75 Inch 4K UHD Interactive Flat Panel Display
Contact us for pricing
Product Details
Key features
Country
of Origin - China
Display
Size - 75 Inch
Resolution
- 3840 x 2160
Number
of Touch - 20 Point
Embedded
OS - Android 11.0
Storage
(MB/GB/TB) - 32GB
Speaker
Details - 2 x 16W (180Hz-20KHz)
Body
Color - Black
|
Specification |
Detail |
|
Model |
ZK‑IWB75BP |
|
Screen Size |
75″ |
|
Resolution |
3840 × 2160 (4K UHD) |
|
Aspect Ratio |
16:9 |
|
Refresh Rate |
60 Hz |
|
Display Colors |
1.07 Billion (10-bit) |
|
Brightness |
350 nits (typical) |
|
Contrast Ratio |
1200:1 (typical) |
|
Response Time |
≤ 10 ms |
|
Viewing Angle |
178° horizontal / 178° vertical |
|
Backlight |
D‑LED |
|
Touch Technology |
Advanced infrared touch |
|
Touch Points |
20 multi-touch points (Android) /
40 (Windows) |
|
Touch Response Time |
≤ 10 ms |
|
Touch Accuracy |
±1 mm (90% of central area) |
|
Minimum Touch Object |
≥ 1.6 mm (single), ≥ 2.0 mm
(multi) |
|
Pen Recognition |
4 grades: 3 mm / 8 mm / 12 mm /
25 mm |
|
Writing Height |
≤ 2.0 mm |
|
CPU |
Quad-core Cortex-A55 |
|
GPU |
Mali G52 MP2 |
|
RAM |
4 GB (8 GB optional) |
|
Storage |
32 GB (64 GB optional) |
|
Operating System |
Android 11.0 (Windows 11 optional) |
|
HDMI / Video Inputs |
HDMI IN ×3, HDMI OUT ×1, VGA IN ×1 |
|
USB Ports |
USB 3.0 ×4, USB 2.0 ×1, USB Type-C
×1 |
|
Ethernet / Network |
LAN IN/OUT ×1 |
|
RS-232 |
1 port |
|
Audio |
Audio IN ×1, Audio OUT ×1, SPDIF
×1 |
|
Wireless |
Wi‑Fi 6 (802.11 ax), Bluetooth 5.2 |
|
Camera |
13 MP, auto-framing, 92° × 60°
field of view |
|
Microphones |
6-mic array, echo cancellation,
noise filtering, automatic gain |
|
Speakers |
2 × 16 W (180 Hz–20 kHz) |
|
Power Consumption |
~300 W (active), ≤ 0.5 W (standby) |
|
Power Supply |
AC 100–240 V, 50/60 Hz |
|
Dimensions (W × H × D) |
~1709 × 1029 × 88 mm |
|
Weight |
~47.65 kg |
|
Operating Temp / Humidity |
0 °C–40 °C, 10%–90% RH |
|
Storage Temp / Humidity |
–20 °C–60 °C, 10%–90% RH |
|
Glass Hardness |
9H (pencil hardness), 7 Mohs
tempered glass |
|
Bonding Technology |
Near-zero gap between glass and
display |
|
Included Features |
Split-screen display, smartphone
mirroring |
|
Warranty |
1 year |
