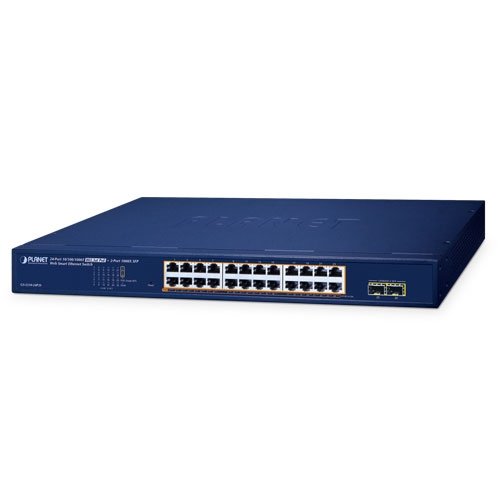

24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-24P2S Switch

Genuine Product Fast Delivery Easy Returns

Key Features

Reliable and Efficient Network: The 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-24P2S provides reliable and efficient network connections with its 24 10/100/1000BASE-T RJ45 copper ports and 2 x 100/1000BASE-X SFP interface.

High Power Budget: The switch supports up to 260 watts of PoE power budget, making it ideal for powering devices such as IP cameras, access points, and VoIP phones.

Advanced Security Features: The GS-2210-24P2S features advanced security features such as port isolation, DHCP snooping, and IPv4 IGMP v1/v2 snooping to protect your network from unauthorized access and attacks.

Easy Management: The switch supports web-based management and Telnet, making it easy to configure and manage the switch remotely.

High-Speed Performance: The GS-2210-24P2S supports high-speed performance with its 52Gbps non-blocking switch fabric and 38.68Mpps switching throughput.

Green Energy Savings: The switch supports EEE Green energy savings, which reduces power consumption by up to 85% when the network is idle.

Advanced VLAN and QoS Features: The GS-2210-24P2S supports advanced VLAN and QoS features, including 802.1Q tagged VLAN, up to 16 VLAN groups, and 8 priority queues on all switch ports.

Reliable Power Supply: The switch supports end-span PoE power supply type, which provides reliable power supply to devices such as IP cameras and access points.

Wide Operating Temperature: The GS-2210-24P2S operates within a wide temperature range of 0 ~ 50 degrees C, making it suitable for deployment in harsh environments.

Compliance with International Standards: The switch complies with international standards such as FCC Part 15 Class A, CE, and IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3z Gigabit 1000BASE-SX/LX.

Easy Installation: The GS-2210-24P2S is easy to install and configure, with a user-friendly web-based management interface and Telnet support.

Advanced Traffic Management: The switch supports advanced traffic management features, including flow control, back pressure, and IPv4 IGMP v1/v2 snooping.

High Availability: The GS-2210-24P2S supports high availability features, including port mirroring, many-to-1 monitor, and VLAN support.

Specification

Hardware Specifications	Copper Ports: 24 10/100/1000BASE-T RJ45 copper ports
PoE Injector Port	24 ports with 802.3af/802.3at PoE+ injector function
Flash Memory	16Mbytes
Reset Button	< 10 sec: System reboot > 10 sec: Factory default
ESD Protection	Contact ±6KV , Air ±8KV
Surge Protection	Differential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)	440 x 207 x 44mm
Weight	2500g
Power Consumption	9.4 watts/32BTU (System) 297 watts/1012 BTU (System + PoE)
Power Requirements	AC 100~240V, 50/60Hz
Fan	2
LED	System: PWR (Green) PoE Usage 80% (Green) Ports: LNK/ACT (Green) PoE-in-Use (Amber)
Switch Architecture	Store-and-forward
Switch Fabric	52Gbps/non-blocking
Switch Throughput	38.68Mpps
Address Table	8K MAC address table with auto-learning, auto-aging
Shared Data Buffer	4.1MB
Jumbo Frame	10KBytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
PoE Standard	IEEE 802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	32W (max.)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	260 watts (max.)
Layer 2 Functions	Port Configuration: EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection Port Status: Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status
Port Mirroring	In / Out / All Many-to-1 monitor
VLAN	802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control	TX/RX/Both Link Aggregation: static trunk Supports 8 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR
Multicast	IPv4 IGMP v1/v2 snooping Up to 256
Security Functions	Security: Port isolation DHCP Snooping
Switch Management Functions	System Configuration: Telnet, Web browser Management: Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics: IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro
Standard Conformance	Regulatory Compliance: FCC Part 15 Class A, CE Standards Compliance: IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2
Environment	Operating: Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) Storage: Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Ordering Information	GS-2210-24P2S 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch

Description

24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-24P2S Switch

Key Features & Benefits:

Reliable and Efficient Network: The 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-24P2S provides reliable and efficient network connections with its 24 10/100/1000BASE-T RJ45 copper ports and 2 x 100/1000BASE-X SFP interface.
High Power Budget: The switch supports up to 260 watts of PoE power budget, making it ideal for powering devices such as IP cameras, access points, and VoIP phones.
Advanced Security Features: The GS-2210-24P2S features advanced security features such as port isolation, DHCP snooping, and IPv4 IGMP v1/v2 snooping to protect your network from unauthorized access and attacks.
Easy Management: The switch supports web-based management and Telnet, making it easy to configure and manage the switch remotely.
High-Speed Performance: The GS-2210-24P2S supports high-speed performance with its 52Gbps non-blocking switch fabric and 38.68Mpps switching throughput.
Green Energy Savings: The switch supports EEE Green energy savings, which reduces power consumption by up to 85% when the network is idle.
Advanced VLAN and QoS Features: The GS-2210-24P2S supports advanced VLAN and QoS features, including 802.1Q tagged VLAN, up to 16 VLAN groups, and 8 priority queues on all switch ports.
Reliable Power Supply: The switch supports end-span PoE power supply type, which provides reliable power supply to devices such as IP cameras and access points.
Wide Operating Temperature: The GS-2210-24P2S operates within a wide temperature range of 0 ~ 50 degrees C, making it suitable for deployment in harsh environments.
Compliance with International Standards: The switch complies with international standards such as FCC Part 15 Class A, CE, and IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3z Gigabit 1000BASE-SX/LX.
Easy Installation: The GS-2210-24P2S is easy to install and configure, with a user-friendly web-based management interface and Telnet support.
Advanced Traffic Management: The switch supports advanced traffic management features, including flow control, back pressure, and IPv4 IGMP v1/v2 snooping.
High Availability: The GS-2210-24P2S supports high availability features, including port mirroring, many-to-1 monitor, and VLAN support.

Ideal For:

Small and medium-sized businesses
Enterprise networks
Data centers
Industrial networks
Education institutions
Healthcare facilities
Government agencies
Retail stores
Hotels and resorts
Office buildings

Summary:

The 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch GS-2210-24P2S is a reliable and efficient network solution for small and medium-sized businesses, enterprise networks, and data centers. With its high power budget, advanced security features, and easy management, this switch is ideal for powering devices such as IP cameras, access points, and VoIP phones. The GS-2210-24P2S is available at Revolution Technology BD and is a great addition to any network infrastructure.
