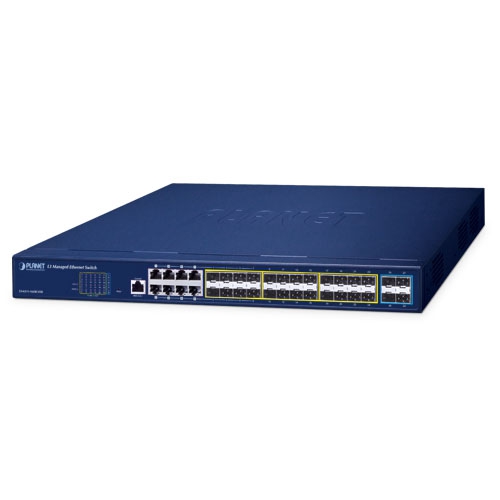

GS-6311-16S8C4XR 16-Port 100/1000X SFP 10G Ethernet Switch
Contact us for pricing
Product Details
Key Features
High performance and reliability: The GS-6311-16S8C4XR switch provides high performance and reliability with its store-and-forward architecture, 128Gbps non-blocking switch fabric, and 95.23Mpps switching throughput.
Scalable and flexible: The switch is scalable and flexible, supporting up to 24 SFP interfaces, 4 10G SFP+ interfaces, and 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports.
Advanced security features: The switch features advanced security features, including access control lists, port isolation, and DHCP snooping, to protect against unauthorized access and attacks.
Easy management and configuration: The switch is easy to manage and configure, with support for console, Telnet, web browser, and SNMP v1, v2c management interfaces.
Redundant power supply: The switch has a redundant power supply, supporting DC: 36~72V, to ensure continuous operation in case of power failure.
Wide temperature range: The switch operates in a wide temperature range of 0 ~ 50 degrees C, making it suitable for use in various environments.
Compliance with international standards: The switch complies with international standards, including FCC Part 15 Class A, CE, and IEEE 802.3, IEEE 802.3u, IEEE 802.3z, and IEEE 802.3ab.
Support for IPv4 and IPv6: The switch supports both IPv4 and IPv6, making it suitable for use in both IPv4 and IPv6 networks.
Support for multiple protocols: The switch supports multiple protocols, including IEEE 802.1Q VLAN tagging, IEEE 802.1X port authentication network control, and IEEE 802.1ab LLDP.
Support for advanced QoS features: The switch supports advanced QoS features, including 8 priority queues, strict priority, and Weighted Round Robin (WRR) CoS policies.
Support for multicast features: The switch supports multicast features, including IPv4 IGMP v1/v2/v3 snooping, IPv4 Querier mode support, and IPv6 MLD v1/v2 snooping.
Support for security features: The switch supports security features, including access control lists, port isolation, and DHCP snooping, to protect against unauthorized access and attacks.
Support for management features: The switch supports management features, including console, Telnet, web browser, and SNMP v1, v2c management interfaces, to make it easy to manage and configure.
Support for redundant power supply: The switch has a redundant power supply, supporting DC: 36~72V, to ensure continuous operation in case of power failure.
Hardware Specifications | Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (combo), shared with Ports 1 to 8 |
SFP/mini-GBIC Ports | 24 100/1000BASE-X SFP interfaces |
Compatible with 100BASE-FX SFP transceiver | Yes |
10G SFP+ Ports | 4 10GBASE-SR/LR SFP+ interfaces (ports 25 to 28) |
Backward compatible with 1000BASE-SX/LX/BX SFP transceiver | Yes |
Console Port | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
CPU | MIPS 800MHz |
RAM | 512Mbytes |
Flash Memory | 32Mbytes |
ESD Protection | Contact ±6KV , Air ±8KV |
Surge Protection | Differential mode ±2KV , Common mode ±4KV |
Dimensions (W x D x H) | 440 x 260 x 44mm |
Weight | 3495g |
Power Consumption | 36.2 watts/102.9 BTU |
Power Requirements- AC | AC 100~240V, 50/60Hz |
Power Requirements - DC | DC: 36~72V |
Fan | 2 |
LED | System: PWR (Green), SYS (Green) Ports: LNK/ACT (Green) |
Switch Architecture | Store-and-forward |
Switch Fabric | 128Gbps/non-blocking |
Switch Throughput | 95.23Mpps |
Address Table | 16K MAC address table with auto learning function |
ARP Table | 8K |
Routing Table | 6K |
IP Interface | 1024 |
ACL Table | 2K |
Shared Data Buffer | 12MB |
Jumbo Frame | 12KBytes |
Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
IPv4 Layer 3 Functions | IP Routing Protocol Static route RIPv1/v2 OSPFv2 |
ARP | ARP Proxy |
IGMP Proxy | Yes |
IPv6 Layer 3 Functions | ICMPv6,ND,DNSv6 |
Layer 2 Functions | Port Configuration Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect Port Status Display each port’s speed duplex mode, link status, flow control status and auto negotiation status VLAN 802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
Bandwidth Control | TX/RX/Both |
Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group |
QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR |
Multicast | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024 |
Security Functions | Access Control List Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries |
Port isolation | Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 |
AAA | TACACS+ and IPv4/IPv6 over RADIUS |
Authentication | IEEE 802.1x port-based network access control |
Switch Management Functions | System Configuration Console, Telnet, Web browser, SNMP v1, v2c Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3 Management IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility SNMP MIBs RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
Standard Conformance | Regulatory Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring |
Description
GS-6311-16S8C4XR 16-Port 100/1000X SFP 10G Ethernet Switch
Key Features & Benefits:
- High performance and reliability: The GS-6311-16S8C4XR switch provides high performance and reliability with its store-and-forward architecture, 128Gbps non-blocking switch fabric, and 95.23Mpps switching throughput.
- Scalable and flexible: The switch is scalable and flexible, supporting up to 24 SFP interfaces, 4 10G SFP+ interfaces, and 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports.
- Advanced security features: The switch features advanced security features, including access control lists, port isolation, and DHCP snooping, to protect against unauthorized access and attacks.
- Easy management and configuration: The switch is easy to manage and configure, with support for console, Telnet, web browser, and SNMP v1, v2c management interfaces.
- Redundant power supply: The switch has a redundant power supply, supporting DC: 36~72V, to ensure continuous operation in case of power failure.
- Wide temperature range: The switch operates in a wide temperature range of 0 ~ 50 degrees C, making it suitable for use in various environments.
- Compliance with international standards: The switch complies with international standards, including FCC Part 15 Class A, CE, and IEEE 802.3, IEEE 802.3u, IEEE 802.3z, and IEEE 802.3ab.
- Support for IPv4 and IPv6: The switch supports both IPv4 and IPv6, making it suitable for use in both IPv4 and IPv6 networks.
- Support for multiple protocols: The switch supports multiple protocols, including IEEE 802.1Q VLAN tagging, IEEE 802.1X port authentication network control, and IEEE 802.1ab LLDP.
- Support for advanced QoS features: The switch supports advanced QoS features, including 8 priority queues, strict priority, and Weighted Round Robin (WRR) CoS policies.
- Support for multicast features: The switch supports multicast features, including IPv4 IGMP v1/v2/v3 snooping, IPv4 Querier mode support, and IPv6 MLD v1/v2 snooping.
- Support for security features: The switch supports security features, including access control lists, port isolation, and DHCP snooping, to protect against unauthorized access and attacks.
- Support for management features: The switch supports management features, including console, Telnet, web browser, and SNMP v1, v2c management interfaces, to make it easy to manage and configure.
- Support for redundant power supply: The switch has a redundant power supply, supporting DC: 36~72V, to ensure continuous operation in case of power failure.
Ideal For:
- Data centers and enterprise networks
- Service providers and carriers
- Education and research institutions
- Government agencies and public sector organizations
- Financial institutions and banking systems
- Healthcare and medical facilities
- Manufacturing and industrial plants
- Retail and e-commerce businesses
- Hotels and hospitality industries
- Transportation and logistics companies
Summary:
The GS-6311-16S8C4XR is a high-performance and reliable 16-port 100/1000X SFP + 8-port Gigabit TP/SFP + 4-port 10G SFP+ managed Ethernet switch. It features advanced security features, easy management and configuration, and redundant power supply. Suitable for data centers, enterprise networks, service providers, and other applications where high performance and reliability are required. Available at Revolution Technology BD.
