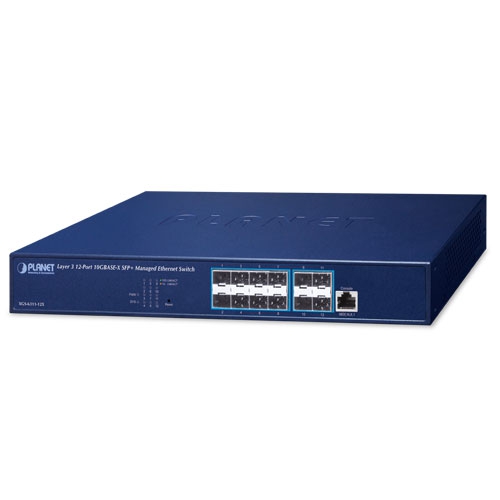

Layer 3 12-Port 10GBASE-X SFP+ Managed Ethernet Switch
Contact us for pricing
Product Details
Key Features
High-speed performance with 240Gbps non-blocking switch fabric: The Layer 3 12-Port 10GBASE-X SFP+ Managed Ethernet Switch provides high-speed performance with a 240Gbps non-blocking switch fabric, ensuring seamless and efficient data transfer.
Advanced security features: The switch features advanced security features, including access control lists, port isolation, and DHCP snooping, to protect your network from unauthorized access and malicious attacks.
Scalable and flexible: The switch supports up to 4K VLAN groups and 64 trunk groups with 8 ports per group, making it an ideal solution for large-scale networks that require high scalability and flexibility.
Easy management: The switch supports IPv4 and IPv6 dual stack management, user IP security inspection, and SNMP v1, v2c, and v3, making it easy to manage and monitor your network.
High availability: The switch supports IEEE 802.1ag CFM and IEEE 802.1D Spanning Tree Protocol, ensuring high availability and reliability in your network.
Powerful QoS and traffic management: The switch supports 8 priority queues on all switch ports and strict priority and Weighted Round Robin (WRR) CoS policies, making it an ideal solution for networks that require powerful QoS and traffic management.
Advanced multicast management: The switch supports IPv4 IGMP v1/v2/v3 snooping, IPv4 Querier mode support, IPv6 MLD v1/v2 snooping, and Multicast VLAN Register (MVR), making it an ideal solution for networks that require advanced multicast management.
Compliance with industry standards: The switch complies with industry standards, including IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z Gigabit 1000BASE-SX/LX, and IEEE 802.3ae 10Gb/s Ethernet.
Operating temperature range: The switch operates within a temperature range of 0 ~ 50 degrees C, making it suitable for deployment in a variety of environments.
High-speed SFP+ interfaces: The switch features 12 high-speed SFP+ interfaces, supporting 10GBASE-SR/LR and 1000BASE-SX/LX/BX transceivers.
Advanced VLAN management: The switch supports 802.1Q tagged based VLAN, up to 4K VLAN groups, and 802.1ad Q-in-Q (VLAN stacking), making it an ideal solution for networks that require advanced VLAN management.
Support for IPv4 and IPv6: The switch supports both IPv4 and IPv6, making it an ideal solution for networks that require support for both protocols.
Hardware Specifications | SFP+ Slots: 12 10GBASE-SR/LR SFP+ interfaces (port-1 to port-12) |
Compatible with | 1000BASE-SX/LX/BX SFP transceiver |
Console | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
CPU | MIPS 800MHz |
RAM | 512Mbytes |
Flash Memory | 32Mbytes |
ESD Protection | Contact ±6KV , Air ±8KV |
Surge Protection | Differential mode ±2KV , Common mode ±4KV |
Dimensions (W x D x H) | 330 x 230 x 43.6 mm, 1U height |
Weight | 1988g |
Power Consumption | Max. 16.4 watts/55.9 BTU (Power on without any connection), Max. 30.2 watts/102.9 BTU (Full loading) |
Power Requirements | AC 100~240V, 50/60Hz |
Fan | 2 |
LED | System: PWR (Green), SYS (Green), Ports: 10G LNK/ACT (Green), 1G LNK/ACT (Amber) |
Switching Specifications | Switch Architecture: Store-and-forward |
Switch Fabric | 240Gbps/non-blocking |
Switch Throughput | 178.56Mpps |
Address Table | 32K MAC address table with auto learning function |
ARP Table | 8K |
Routing Table | 12K |
IP Interface | 1024 |
ACL Table | 4K |
Shared Data Buffer | 16MB |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Jumbo Frame | 12KB |
IPv4 Layer 3 Functions | IP Routing Protocol: Static route, RIPv1/v2, OSPFv2 |
Layer 3 Protocol | ARP, ARP Proxy, IGMP Proxy, ICMPv6, ND, DNSv6 |
Layer 2 Function | Port Configuration: Port disable/enable, Flow control disable/enable, Bandwidth control on each port, Port loopback detect |
VLAN | 802.1Q tagged based VLAN, up to 4K VLAN groups, 802.1ad Q-in-Q (VLAN stacking), GVRP for VLAN management, Private VLAN Edge (PVE) supported, Protocol-based VLAN, MAC-based VLAN, IP subnet VLAN |
Bandwidth Control | TX/RX/Both |
Link Aggregation | IEEE 802.3ad LACP/static trunk, Supports 64 groups with 8 ports per trunk group |
QoS | 8 priority queues on all switch ports, Supports strict priority and Weighted Round Robin (WRR) CoS policies |
Traffic classification | IEEE 802.1p CoS/ToS, IPv4/IPv6 DSCP, Port-based WRR |
Multicast | IPv4 IGMP v1/v2/v3 snooping, IPv4 Querier mode support, IPv6 MLD v1/v2 snooping, Multicast VLAN Register (MVR), Up to 1024 |
Security Function | Access Control List: Supports Standard and Expanded ACL, IP-based ACL/MAC-based ACL, Time-based ACL, Up to 2K entries |
Port isolation | Supports IP + MAC + port binding, Identification and filtering of L2/L3/L4 based ACL, Defend against DOS or TCP attacks, Suppression of broadcast, multicast and unknown unicast packet |
DHCP Snooping | DHCP Snooping, DHCP Option 82/43/60/61/67 |
Command line authority control | based on user levels |
AAA | TACACS+ and IPv4/IPv6 over RADIUS |
Authentication | IEEE 802.1x port-based network access control |
Management Function | System Configuration: Console, Telnet, Web browser, SNMP v1, v2c, Secure Management Interfaces: SSHv2, TLSv1.2, SNMPv3, Management: IPv4 and IPv6 dual stack management, User IP security inspection for IPv4/IPv6 SNMP, SNMP v1, v2c and v3, SNMP MIB and TRAP, SNMP RMON 1, 2, 3, 9 four groups, IPv4/IPv6 FTP/TFTP, IPv4/IPv6 NTP, RADIUS authentication for IPv4/IPv6 Telnet user name and password, IPv4/IPv6 SSH, The right configuration for users to adopt RADIUS server’s shell management, CLI, console, Telnet, Security IP safety net management function: avoid unlawful landing at nonrestrictive area, Syslog server for IPv4 and IPv6, TACACS+ |
Description
Layer 3 12-Port 10GBASE-X SFP+ Managed Ethernet Switch
Key Features & Benefits:
- High-speed performance with 240Gbps non-blocking switch fabric: The Layer 3 12-Port 10GBASE-X SFP+ Managed Ethernet Switch provides high-speed performance with a 240Gbps non-blocking switch fabric, ensuring seamless and efficient data transfer.
- Advanced security features: The switch features advanced security features, including access control lists, port isolation, and DHCP snooping, to protect your network from unauthorized access and malicious attacks.
- Scalable and flexible: The switch supports up to 4K VLAN groups and 64 trunk groups with 8 ports per group, making it an ideal solution for large-scale networks that require high scalability and flexibility.
- Easy management: The switch supports IPv4 and IPv6 dual stack management, user IP security inspection, and SNMP v1, v2c, and v3, making it easy to manage and monitor your network.
- High availability: The switch supports IEEE 802.1ag CFM and IEEE 802.1D Spanning Tree Protocol, ensuring high availability and reliability in your network.
- Powerful QoS and traffic management: The switch supports 8 priority queues on all switch ports and strict priority and Weighted Round Robin (WRR) CoS policies, making it an ideal solution for networks that require powerful QoS and traffic management.
- Advanced multicast management: The switch supports IPv4 IGMP v1/v2/v3 snooping, IPv4 Querier mode support, IPv6 MLD v1/v2 snooping, and Multicast VLAN Register (MVR), making it an ideal solution for networks that require advanced multicast management.
- Compliance with industry standards: The switch complies with industry standards, including IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z Gigabit 1000BASE-SX/LX, and IEEE 802.3ae 10Gb/s Ethernet.
- Operating temperature range: The switch operates within a temperature range of 0 ~ 50 degrees C, making it suitable for deployment in a variety of environments.
- High-speed SFP+ interfaces: The switch features 12 high-speed SFP+ interfaces, supporting 10GBASE-SR/LR and 1000BASE-SX/LX/BX transceivers.
- Advanced VLAN management: The switch supports 802.1Q tagged based VLAN, up to 4K VLAN groups, and 802.1ad Q-in-Q (VLAN stacking), making it an ideal solution for networks that require advanced VLAN management.
- Support for IPv4 and IPv6: The switch supports both IPv4 and IPv6, making it an ideal solution for networks that require support for both protocols.
Ideal For:
- Large-scale enterprise networks
- Data centers
- Service providers
- Cloud computing environments
- High-performance computing networks
- Networks with high-bandwidth requirements
- Networks with advanced security requirements
Summary:
The Layer 3 12-Port 10GBASE-X SFP+ Managed Ethernet Switch is a high-performance switch designed for large-scale networks that require high-speed performance, advanced security features, and high availability. With its 240Gbps non-blocking switch fabric, advanced security features, and support for IPv4 and IPv6, this switch is an ideal solution for networks that require high scalability and flexibility. The switch is also easy to manage and monitor, with support for IPv4 and IPv6 dual stack management, user IP security inspection, and SNMP v1, v2c, and v3. With its compliance with industry standards and operating temperature range of 0 ~ 50 degrees C, this switch is suitable for deployment in a variety of environments.
