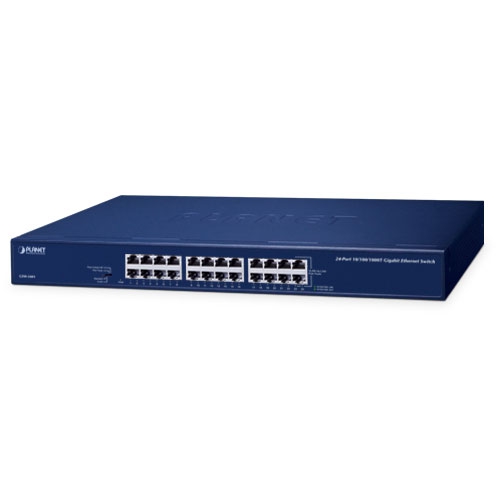

GSW-2401 24-Port 10/100/1000BASE-T Ethernet Switch

Genuine Product Fast Delivery Easy Returns

Key Features

High-Speed Connectivity: The GSW-2401 supports 24 10/100/1000BASE-T ports, providing high-speed connectivity for your network devices.

VLAN Support: With VLAN support, you can segment your network and improve security, reducing the risk of data breaches.

Flow Control: The GSW-2401 features flow control, which helps prevent network congestion and ensures reliable data transmission.

Energy Efficiency: The GSW-2401 supports Energy Efficient Ethernet (EEE), reducing power consumption and heat generation.

Wide Operating Temperature: The GSW-2401 can operate in temperatures ranging from 0 to 50 degrees C, making it suitable for deployment in various environments.

Compact Design: The GSW-2401 has a compact design, measuring 440 x 180 x 44mm, making it ideal for deployment in small spaces.

High Switch Fabric: The GSW-2401 has a high switch fabric of 48Gbps, ensuring fast and reliable data transmission.

Large Address Table: The GSW-2401 has an address table of 8K entries, supporting a large number of devices on your network.

Jumbo Packet Support: The GSW-2401 supports jumbo packets of up to 9K, reducing the number of packets transmitted and improving network efficiency.

Standards Compliance: The GSW-2401 is compliant with various industry standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab.

Easy Installation: The GSW-2401 is easy to install, with a simple DIP switch configuration and a compact design.

Reliable Operation: The GSW-2401 is designed for reliable operation, with a high switching capacity and a wide operating temperature range.

Environmentally Friendly: The GSW-2401 is environmentally friendly, with Energy Efficient Ethernet (EEE) support and a compact design that reduces material usage.

Specification

Hardware Version	10
10/100/1000BASE-T MDI/MDIX Ports	24
DIP Switch	Operation mode selection
Standard	VLAN
Port Trunk	Flow control off
Weight	1.7kg
Power Consumption/Dissipation	10.8 watts/36 BTU
Power Requirements	100~240V AC, 0.22A, 50-60Hz
Dimensions (W x D x H)	440 x 180 x 44mm, 1U height
Switch Processing Scheme	Store-and-Forward
Throughput (packet per second)	35.7Mpps
Switch Fabric	48Gbps
Address Table	8K entries
Jumbo Packet Size	9K
Flow Control	Back pressure for half duplex, IEEE 802.3x Pause frame for full duplex
Standards Conformance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Full-Duplex Flow Control), IEEE 802.3az Energy Efficient Ethernet (EEE)
Operating Temperature	0~50 degrees C
Relative Humidity	5% to 95% (non-condensing)
Storage Temperature	-10~70 degrees C
Storage Relative Humidity	5% to 95% (non-condensing)
Ordering Information	GSW-2401
Product Name	24-Port 10/100/1000BASE-T Gigabit Ethernet Switch

Description

GSW-2401 24-Port 10/100/1000BASE-T Ethernet Switch

Key Features & Benefits:

High-Speed Connectivity: The GSW-2401 supports 24 10/100/1000BASE-T ports, providing high-speed connectivity for your network devices.
VLAN Support: With VLAN support, you can segment your network and improve security, reducing the risk of data breaches.
Flow Control: The GSW-2401 features flow control, which helps prevent network congestion and ensures reliable data transmission.
Energy Efficiency: The GSW-2401 supports Energy Efficient Ethernet (EEE), reducing power consumption and heat generation.
Wide Operating Temperature: The GSW-2401 can operate in temperatures ranging from 0 to 50 degrees C, making it suitable for deployment in various environments.
Compact Design: The GSW-2401 has a compact design, measuring 440 x 180 x 44mm, making it ideal for deployment in small spaces.
High Switch Fabric: The GSW-2401 has a high switch fabric of 48Gbps, ensuring fast and reliable data transmission.
Large Address Table: The GSW-2401 has an address table of 8K entries, supporting a large number of devices on your network.
Jumbo Packet Support: The GSW-2401 supports jumbo packets of up to 9K, reducing the number of packets transmitted and improving network efficiency.
Standards Compliance: The GSW-2401 is compliant with various industry standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab.
Easy Installation: The GSW-2401 is easy to install, with a simple DIP switch configuration and a compact design.
Reliable Operation: The GSW-2401 is designed for reliable operation, with a high switching capacity and a wide operating temperature range.
Environmentally Friendly: The GSW-2401 is environmentally friendly, with Energy Efficient Ethernet (EEE) support and a compact design that reduces material usage.

Ideal For:

Small and medium-sized businesses
Home offices and remote workers
Network administrators and IT professionals
Data centers and server rooms
Industrial automation and control systems
Medical and healthcare facilities
Educational institutions and libraries

Summary:

The GSW-2401 24-Port 10/100/1000BASE-T Ethernet Switch is a high-performance switch designed for small and medium-sized businesses, home offices, and remote workers. With 24 10/100/1000BASE-T ports, VLAN support, and flow control, this switch provides reliable and efficient data transmission. The GSW-2401 is also environmentally friendly, with Energy Efficient Ethernet (EEE) support and a compact design. Order now from Revolution Technology BD and experience the benefits of high-speed connectivity and reliable operation.
