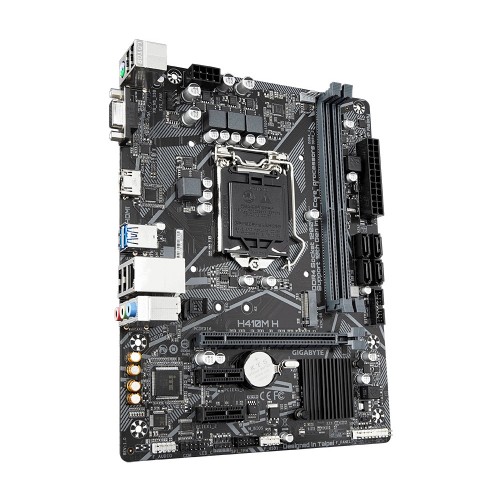

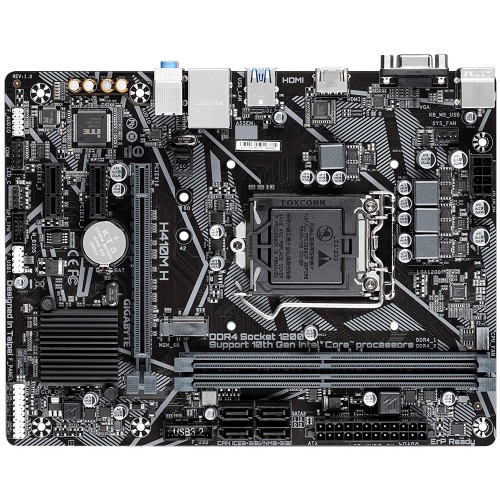

Gigabyte H410M H 10th Gen Micro ATX Motherboard
Contact us for pricing
Product Details
Key Features
- Model: H410M H
- Intel Socket LGA1200 for 10th Gen Processors
- 8-Channel HD Audio
- Smart Fan 5 features
- Anti-Sulfur Resistors Design
- 03 Years Warranty
Specification
|
Basic
Information |
|
|
Supported CPU |
Support for
10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel
Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel
Celeron processors in the LGA1200 package |
|
Chipset |
Intel H410
Express Chipset |
|
BIOS |
1 x 128 Mbit
flash |
|
Form Factor |
Micro ATX
Form Factor; 22.6cm x 17.4cm |
|
Expansion
Slots |
|
|
PCI |
1 x PCI
Express x16 slot, running at x16 |
|
M.2 Socket |
1 x M.2
connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
|
Memory |
|
|
Type |
Dual-channel
architecture |
|
Slots |
2 x DDR4 DIMM |
|
Supported
Memory |
Intel® Core™
i9/i7 processors: |
|
Maximum
Memory |
64 GB |
|
Graphics |
|
|
Graphics |
Integrated
Graphics Processor-Intel HD Graphics support: |
|
Max Shared
Memory |
512MB |
|

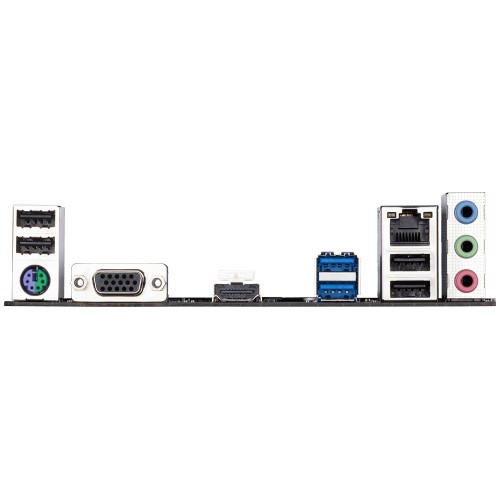

Connector
& Ports |
|
|
HDMI |
1 x HDMI ports,
supporting a maximum resolution of 4096x2160@30 Hz |
|
D-Sub (s) |
1 x D-Sub
port, supporting a maximum resolution of 1920x1200@60 Hz |
|
USB (s) |
4 x USB 3.2
Gen 1 ports (2 ports on the back panel, 2 ports available through the
internal USB header) |
|
LAN Port (s) |
Realtek GbE
LAN chip (1000 Mbit/100 Mbit) |
|
Supported
Storage |
1 x M.2
connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
|
Audio |
Realtek
ALC887 codec |
|
Internal I/O
Ports |
1 x 24-pin
ATX main power connector |
|
TPM (Trusted
Platform Module ) |
1 x Trusted
Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
Others |
|
|
Special
Features |
Support for
APP Center |
|
Bundled
Software |
Support for
Windows 10 64-bit |
|
Warranty
Information |
|
|
Manufacturing
Warranty |
03 Years |
