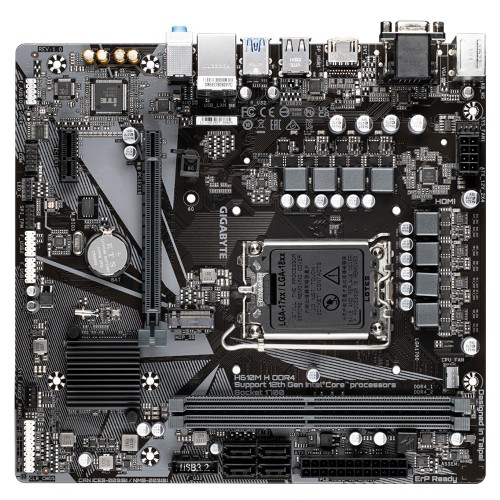

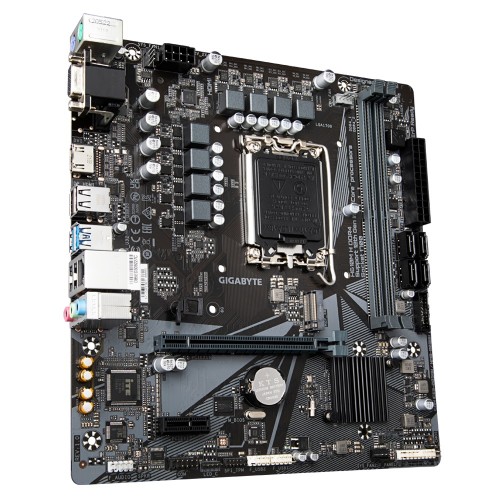

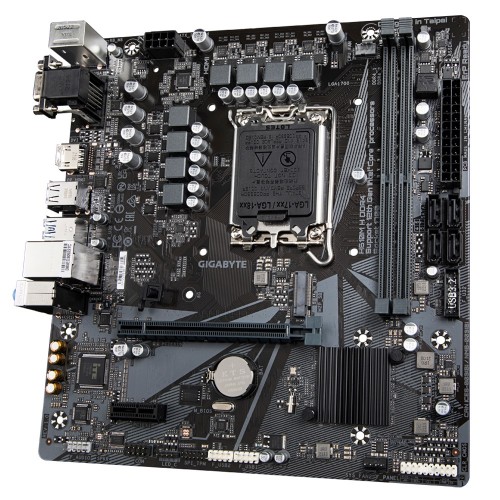

GIGABYTE H610M H DDR4 12th Gen Micro ATX Motherboard

Supported CPU

LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Chipset

Intel H610 Express Chipset

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

PCI

1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Type

DDR4

Slots

2 x DDR DIMM sockets

Supported Memory

3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

Up to 64 GB (32 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports

HDMI

1 x HDMI 2.0 port

D-Sub (s)

1 x D-Sub port

USB (s)

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port (s)

Intel GbE LAN chip (1 Gbps/100 Mbps)

Supported Storage

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Audio

3 x audio jacks

Internal I/O Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Special Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Manufacturing Warranty

3 years
