LifeSmart Nature 7 PRO Full-screen Control Panel and Smart Gateway
Contact us for pricing
Product Details
Key Features
7-inch High
definition touch screen
Configurable built-in
menu to meet your needs
Customizable physical
buttons to switch scenes
Built-in speaker
Android 11 OS to
ensure low-power and stable operation
Product Description

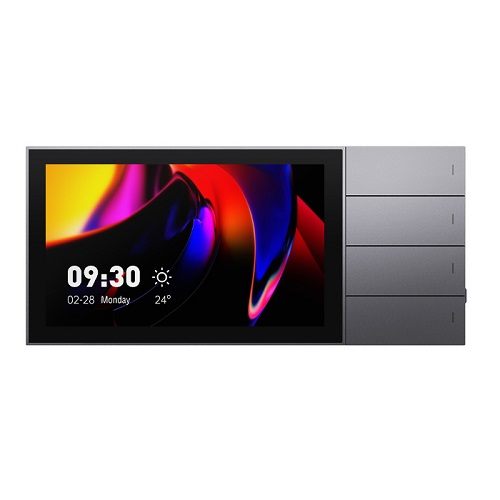

A full-screen control panel
incorporating all intelligent control features, Nature 7 PRO enables control of
various smart home devices and shifting between different smart scenes like
“Away”, “Sleep,” “Movie” or”Dinner“. In particular, using Nature 7 PRO, a user
can accurately control the degree to which a curtain opens and closes. Tune the
brightness and color of a lamp or adjust the temperature of an air conditioner.
Enjoying a truly smart life. The wall-embedded intelligent panel can be easily
integrated into homes' styling with 7-inch touch panel and standard 86mm base.
It is not only a personal smart housekeeper at your fingertip but also a smart
property terminal within your reach.
Features
7-inch High definition touch
screen
Configurable built-in menu to
meet your needs
Customizable physical buttons
to switch scenes
Works as a gateway
Built-in speaker
AF coating
PoE power supply
Android 11 OS to ensure
low-power and stable operation
Supports multiple protocols
including CoSS, Zigbee, Wi-Fi
Specification
|
General |
|
|
Model Number |
LS227 |
|
Installation |
Detachable bracket |
|
Operating Temperature |
-5~45℃ |
|
Operating Humidity |
5~90% |
|
Network |
LAN*1+Wi-Fi |
|
Screen |
7 inch |
|
Resolution |
1024*600(IPS) |
|
Operation System |
Android 11 |
|
Power Supply |
DC 12V，PoE 48V |
|
Microphone |
Yes |
|
Speaker |
Yes |
|
CPU |
4 core ARM |
|
Button |
Scene button*4，power button |
|
Radio |
|
|
Radio Protocol |
Wi-Fi/CoSS/Zigbee/Bluetooth |
|
Radio Frequency |
CoSS:433MHz Others: 2.4GHz |
|
Signal Range(Open Field) |
CoSS: 300m Others: 50m |
|
Construction |
|
|
Color |
Grey |
|
Dimension |
Outside the
wall:249*113*16mm; Whole product:249*113*28.6mm; |
|
Casing |
PC |
|
Weight |
410g(Bare metal) 525g(Whole product) |
