LifeSmart Nature Mini Pro Smart Control Panel
Contact us for pricing
Product Details
Anti-Fingerprint HD Full-color Touch
Screen
Multi-protocol Wireless Transmission
Protocol
5G+2.4g Dual-band Wi-Fi
Reddot Award Best of the Best
Ultra Low Power
Performance Upgrade
Product Description

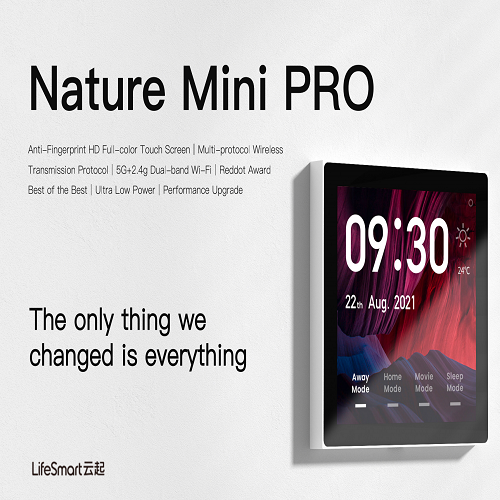

Nature Mini PRO is a smart home control panel installed at the intersec- tion of moving paths in your home. It has a 4-inch HD touch screen to provide you with a wide visual space and a comfortable interaction experience. With a powerful hardware platform to support multi-mode protocols and a customized operating system, it can transmit control signals to smart home devices and receive status feedback, thus realizing control functions of smart devices such as turning off lights and opening curtains.
Nature Mini PRO supports multiple protocols including CoSS, Zigbee, dual brand Wi-Fi and BLE.
Specification
|
Model Number |
LS268 |
|
Installation |
In-wall
concealed with 86 back box |
|
Operating
Temperature |
-5~45℃ |
|
Operating
Humidity |
5~90% |
|
Network |
Wi-Fi
2.4GHz/5GHz |
|

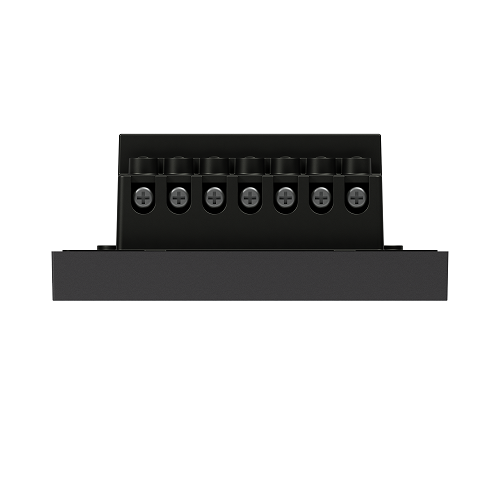

Interface |
Live/Neutral/Light1/Light2/Light3
wire in; |
|
Screen |
4 inch |
|
Resolution |
480*480 |
|
Operation
System |
Linux |
|
Power Supply |
AC 100-240V
50/60Hz |
|
Microphone |
Yes |
|
Speaker |
Yes |
|
Radio
Protocol |
CoSS, Zigbee,
Bluetooth |
|
Radio
Frequency |
2.4GHz/5GHz/433MHz
GFSK |
|
Wireless
Transmission Distance |
200m |
|
Color |
White/Gray |
|
Dimension |
Outside the
wall:86*86*11mm; Whole product:86*86*36mm |
|
Casing |
Flameresistant
PC |
