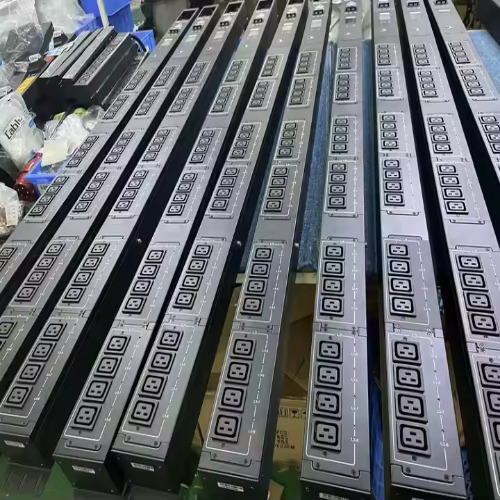

OIT 15Ports C19 16A 45KW Each Outlet PDU
Contact us for pricing
Product Details
Key Features
15 C19 Outlets
16A Current Rating
High Efficiency
Rack-Mountable Design
Total output power: 45KW
Total Current: 63A
Overload Protection, Monitoring and Alerts
Specification
Input Characteristics | |
Input Connector | 63A x 5 wires (junction Box, breaker optional) |
Frequency | 50/60 Hz |
Output Characteristics | |
Total Current | Max 63A |
Rating Output Voltage | 208-250V |
Max Output Power | Under 208V – Max 2620W per outlet Under 220V – Max 2772W per outlet Under 240V – Max 3024W per outlet Under 250V – Max 3150W per outlet |
Total Output | 45KW |
Socket Standard | 15 pcs C19 (can be changed as client's request) |
Protection | |
Breaker | 3 pcs 1P 63A Hydraulic circuit breaker Each breaker controls 5 outlets |
Dimensions | LxWxH 1109*85*85 mm |
Net Weight | 8 kg |
Wire Specification | UL Certification, with flame retardant |
Certificate | Ce RoHS |
