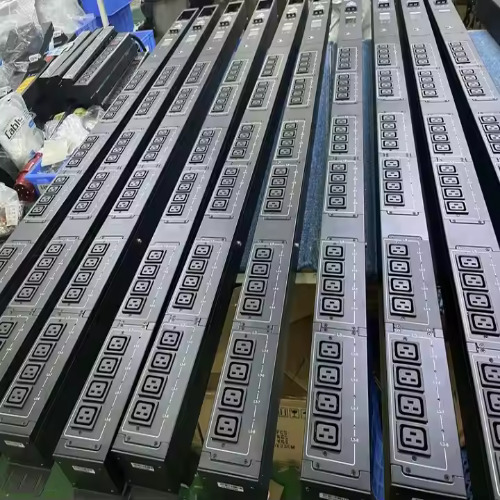

OIT 24Ports C19 16A 90KW Each Outlet PDU
Contact us for pricing
Product Details
Key Features
High Power Capacity: Supports up to 125A at 415V
Multiple Outlets: Equipped with 24 IEC C19 outlets
16A per Outlet
Socket Standard - C19
Total output power: 90KW
Total Current: 125A
Specification
Input Characteristics | |
Input Connector | 125A x 5 wires (junction Box, input breaker) |
Frequency | 50/60 Hz |
Output Characteristics | |
Total Current | Max 125A |
Rating Output Voltage | 208-250V |
Max Output Power | Under 208V – Max 3244W per outlet Under 220V – Max 3432W per outlet Under 240V – Max 3744W per outlet Under 250V – Max 3900W per outlet |
Total Output | 90KW |
Socket Standard | 24 pcs C19 (can be changed as client's request) |
Protection | |
Breaker | Main 3P 125A Circuit breaker each phase with 1 indicator light |
Dimensions | 1601*85*80 mm |
Net Weight | 13 kg |
Wire Specification | UL Certification, with flame retardant |
Certificate | ETL, Ce RoHS |
