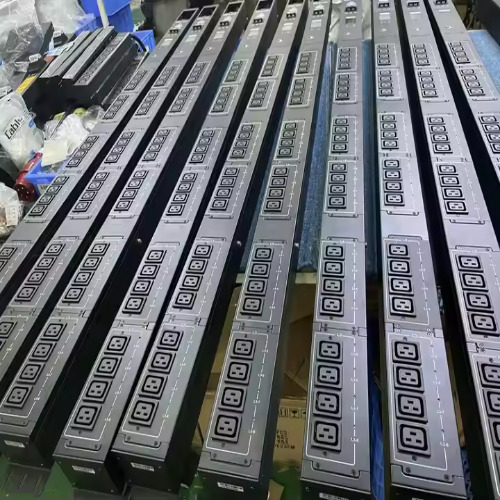

OIT 18Ports C19 16A 57KW Each Outlet PDU
Contact us for pricing
Product Details
Key Features
18 C19 Outlets
16A Current Rating
High Efficiency
Rack-Mountable Design
Total output power: 57KW
Total Current: 80A
Overload Protection, Monitoring and Alerts
Specification
Input Characteristics | |
Input Connector | 80A x 5 wires (junction Box, breaker optional) |
Frequency | 50/60 Hz |
Output Characteristics | |
Total Current | Max 80A |
Rating Output Voltage | 208-250V |
Max Output Power | Under 208V – Max 2766W per outlet Under 220V – Max 2926W per outlet Under 240V – Max 3192W per outlet Under 250V – Max 3950W per outlet |
Total Output | 57KW |
Socket Standard | 18 pcs C19 (can be changed as client's request) |
Protection | |
Breaker | 6Pcs 1P 40A Hydraulic Magnetic Circuit breaker each breaker control 3 outlets |
Dimensions | 554*150*180 mm |
Net Weight | 7 kg |
Wire Specification | UL Certification, with flame retardant |
Certificate | ETL, Ce RoHS |
