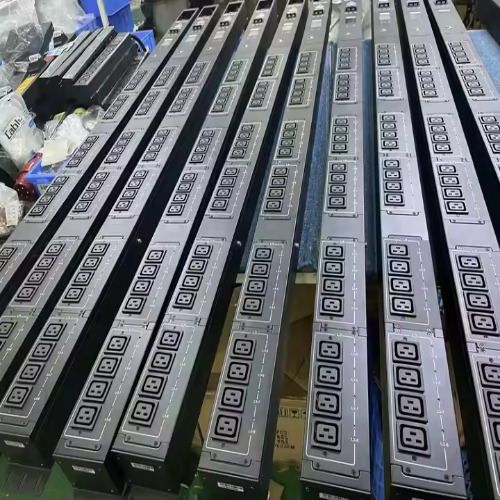

OIT 24Ports C19 16A 90KW Each Outlet PDU
Contact us for pricing
Product Details
Key Features
Total Output Power – 90KW
Total Current – 125A
Socket Standard – C19
Current Rating – 16 amp
Specification
|
Input
Characteristics |
|
|
Input Connector |
125A x 5 wires (junction Box, input breaker) |
|
Frequency |
50/60 Hz |
|
Output
Characteristics |
|
|
Total Current |
Max 125A or breaker |
|
Rating Output Voltage |
208-250V |
|
Max Output Power |
Under 208V – Max 3250W per outlet Under 220V – Max 3437W per outlet Under 240V – Max 37500W per outlet Under 250V – Max 3906W per outlet |
|
Total Output |
WYE Max 90KW |
|
Socket Standard |
24 pcs C19 |
|
Remote Control |
Each outlet by TCP/IP |
|
Protection |
|
|
Breaker |
125A chinehow 3P breaker with UL or CE |
|
Dimensions |
2068*94*85 mm |
|
Net Weight |
18 kg |
|
Wire Specification |
UL Certification, with flame retardant |
|
Certificate |
ETL, Ce RoHS |
