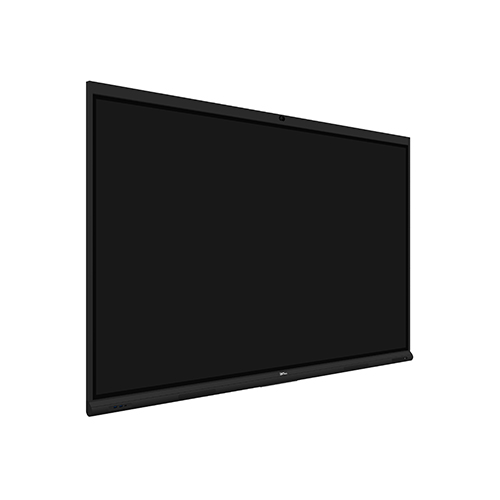

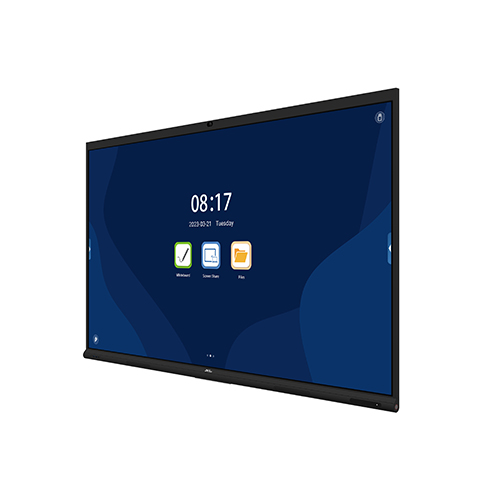

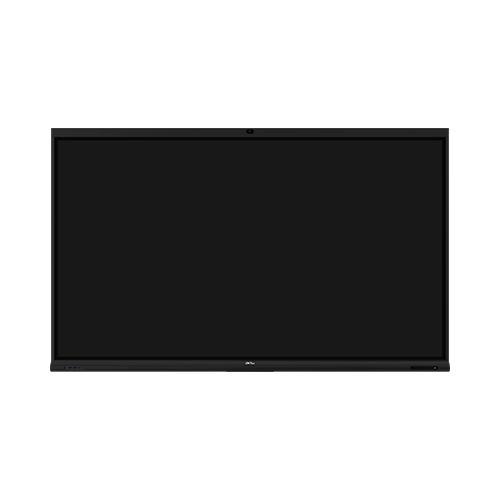

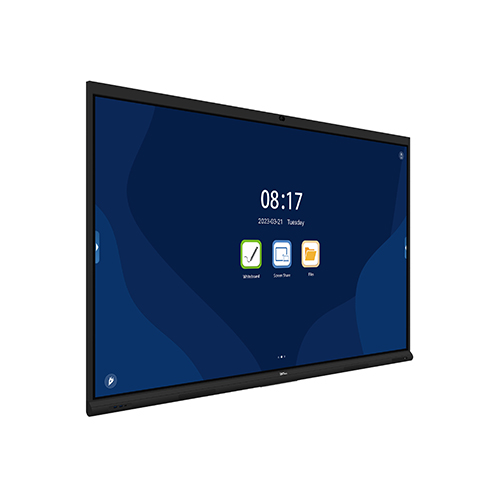

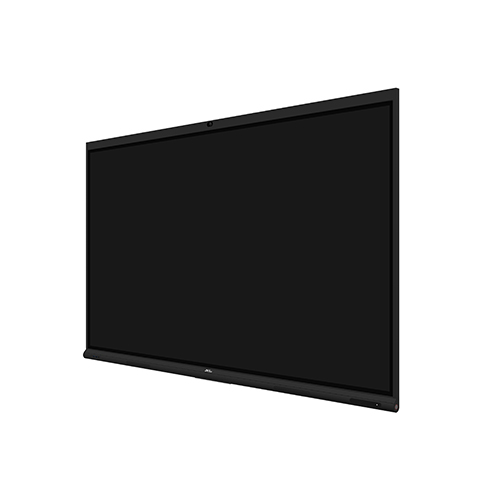

ZKTeco ZK-IWB65BM 65 Inch 4K UHD Interactive Flat Panel Display
Contact us for pricing
Product Details
Key Features
Model: ZK-IWB65/75/86BM
UHD 4K Display with Resolution of 3840×2160
RAM: 8GB, Built-in Storage: 64GB
Camera: 8 MP, Diagonal 103°, Face & Voice Tracking,
Advanced Infrared Touch Technology
|
Specification |
Detail |
|
Model |
ZK‑IWB65BM |
|
Screen Size |
65″ |
|
Native Resolution |
3840 × 2160 (4K UHD) |
|
Aspect Ratio |
16:9 |
|
Response Time |
6 ms (typical) |
|
Refresh Rate |
60 Hz |
|
Display Colors |
1.07 Billion |
|
Brightness (Typical) |
400 cd/m² |
|
Contrast Ratio |
1200:1 (typical) |
|
Viewing Angle |
178° horizontal / 178° vertical |
|
Bonding Technology |
Very small gap between tempered
glass and screen |
|
Touch Technology |
Advanced infrared touch |
|
Touch Points |
Android: 20 points; Windows: 40
points |
|
Touch Response Time |
< 10 ms |
|
Touch Accuracy |
±1 mm (in 90% of central area) |
|
Writing Height |
2.0 mm |
|
Touch Resolution |
32768 × 32768 |
|
Minimum Touch Object |
≥1.6 mm (single), ≥2.0 mm (multi) |
|
Pen Recognition |
4 Grades: 3 mm / 8 mm / 12 mm / 25
mm |
|
Operating System |
Android 11.0 / Windows 11
(optional) |
|
CPU |
Quad-core Cortex-A73 + Quad-core
Cortex-A53 |
|
GPU |
Mali G52 MP8 |
|
RAM |
8 GB |
|
Storage (ROM) |
64 GB (Android) / 256 GB (Windows) |
|
HDMI / Video Ports |
HDMI OUT ×1, HDMI IN (ARC) ×1,
HDMI IN (CEC) ×2, VGA ×1 |
|
Audio Ports |
Audio IN ×1, Audio OUT ×1 |
|
Network / LAN |
LAN IN/OUT ×1 |
|
USB Ports |
USB 3.0 ×4, USB 2.0 ×1, Type-C ×2 |
|
Touch-USB |
×3 |
|
RS‑232 |
1 port |
|
Wireless |
Wi-Fi (802.11 ax/ac/b/g/n),
Bluetooth 5.2, NFC (ISO/IEC 14443 A & B) |
|
Camera |
8 MP, 103° field of view, face and
voice tracking |
|
Microphone |
8-mic array, pickup range 8 m,
supports AEC / AGC / speech enhancement |
|
Power Consumption |
300 W (active), ≤ 0.5 W (standby) |
|
Power Supply |
100–240 V AC, 50/60 Hz |
|
Dimensions (W × H × D) |
1482.1 × 936.7 × 105.6 mm |
|
Weight |
~40.5–42 kg |
|
Operating Temp / Humidity |
0°C–40°C; 20%–80% RH
(non-condensing) |
|
Storage Temp / Humidity |
10°C–60°C; 10%–60% RH
(non-condensing) |
|
Build Material |
Aluminium alloy + sheet metal;
black finish |
|
Included Accessories |
Remote, power cable, USB cable,
HDMI cable, 2 stylus pens, eraser, wall mount bracket |
|
Warranty |
1 year |
