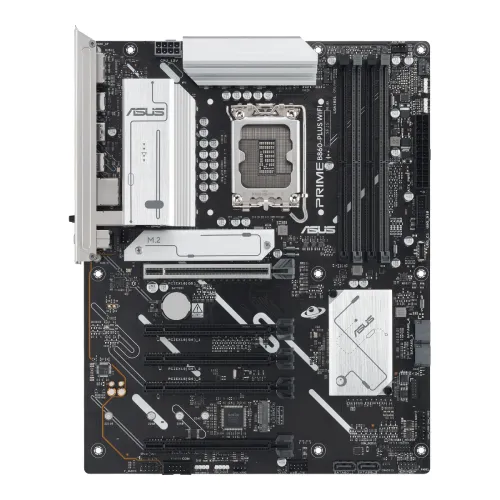

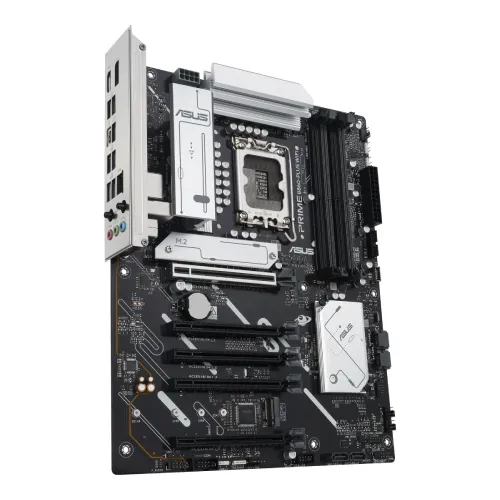

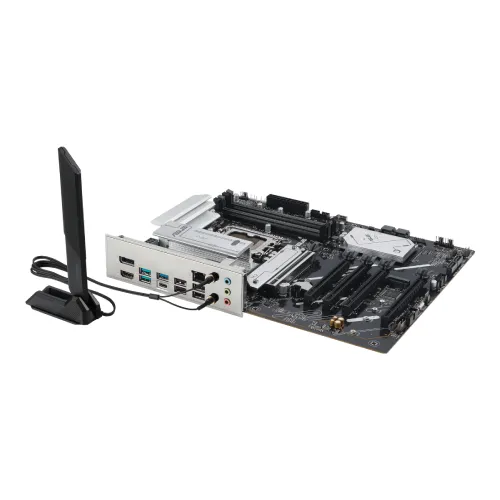

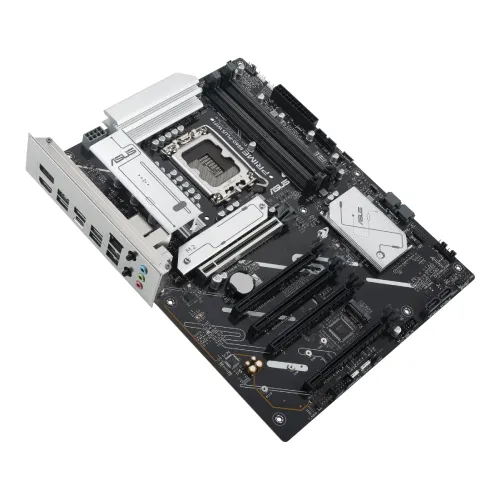

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Exclusive of all taxes
Product Details
Key Features
Model: PRIME B860-PLUS WIFI-CSM
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2x M.2, Realtek 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3
Specification
|
Model |
ASUS B860 ATX Motherboard |
|
CPU Support |
Intel Core Ultra Series 2 (LGA1851) |
|
Chipset |
Intel B860 |
|
Form Factor |
ATX (30.5cm x 24.4cm) |
|
Memory Type |
DDR5 |
|
Memory Slots |
4 x DIMM |
|
Max Memory |
256GB |
|
Memory Speed |
Up to DDR5 8666+(OC) |
|
PCIe x16 Slots |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 3 x PCIe 4.0 x1 |
|
M.2 Slots |
2 total (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) |
|
SATA Ports |
4 x SATA 6Gb/s |
|
RAID Support |
RAID 0/1/5/10 (SATA only) |
|
Audio |
Realtek 7.1 Channel HD Audio + S/PDIF Out |
|
Ethernet |
Realtek 2.5GbE (LANGuard) |
|
Wireless |
Wi-Fi 6E + Bluetooth 5.3 |
|
Video Outputs |
DisplayPort, HDMI 2.1 |
|

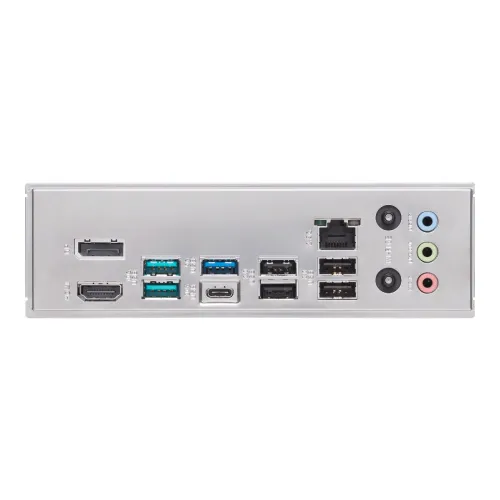

USB Ports |
1x USB-C 20Gbps, 2x USB-A 10Gbps, 1x USB-A 5Gbps, 4x USB 2.0 (back panel) + 1x USB-C 5Gbps, 2x USB 5Gbps, 2x USB 2.0 (internal) |
|
Internal Headers |
6x fan/pump, 4x RGB, Thunderbolt header, TPM header |
|
Power Connectors |
24-pin + 1x 8-pin 12V |
|
Special Features |
Q-Dashboard, Q-LED diagnostics, M.2 heatsink |
|
Bundled Software |
Armoury Crate, Adobe Creative Cloud Trial, Norton 360 Trial |
|
Warranty |
3 years |
Description
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
The Asus PRIME B860-PLUS WIFI-CSM is a high-performance Asus motherboard intended for advanced PC builders. This Asus Motherboard supports Intel Core Ultra Processors (Series 2) via the LGA1851 socket. This Asus B860 motherboard can support up to 256GB of DDR5 memory at speeds of up to 8666+MT/s (OC), offering great performance for demanding workloads. This Asus B860 Motherboard has a variety of expansion options, including one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, and three PCIe 4.0 x16 slots, allowing for a wide choice of peripherals. The Asus 860 Series Motherboard includes two M.2 slots and four SATA 6Gb/s connections for flexible and fast storage solutions. 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth v5.3 provide fast and robust network connectivity. The USB ports include USB 20Gbps Type-C, USB 10Gbps Type-A, and USB 2.0, which cater to a wide range of devices. Cooling is efficiently managed using VRM heatsinks, an M.2 heatsink, and numerous fan headers, resulting in optimal thermal performance. This Asus ATX motherboard also supports ASUS Aura Sync for custom RGB lighting and EZ PC DIY for easy build customization. Overall, the Asus WiFi motherboard has been designed to provide reliable power delivery, effective cooling, and great performance tuning options, making The Asus PRIME B860-PLUS WIFI-CSM motherboard a fantastic choice for both gamers and content makers.
