Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard

৳ 33,700

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

Specification

Basic Information	Supported CPU	AMD Socket AM5 for Ryzen 8000/7000 Series Desktop Processors
	Chipset	AMD B650
	Form Factor	ATX (30.5 cm x 24.4 cm)
	BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Memory	Type & Slots	4 x DDR5 DIMM Slots
	Supported Memory	DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/5000/4800 MHz
	Maximum Capacity	128GB
	Features	Dual Channel, EXPO, OptiMem II, ECC & Non-ECC Un-buffered
Expansion Slots	PCIe x16 Slots (from CPU)	1 x PCIe 4.0/3.0 x16
	PCIe x16 Slots (from Chipset)	1 x PCIe 4.0/3.0 x16 (runs at x4 mode)
	PCIe x1 Slots	2 x PCIe 4.0/3.0 x1
Storage	M.2 Slots (Total 3)	M.2_1 (CPU): PCIe 5.0 x4 (2242/2260/2280) M.2_2 (Chipset): PCIe 4.0 x4 (2242/2260/2280/22110) M.2_3 (Chipset): PCIe 4.0 x4 (2242/2260/2280)
	SATA Ports	4 x SATA 6Gb/s
	RAID Support	AMD RAIDXpert2 (PCIe & SATA RAID 0/1/10)
Audio	Codec	Realtek 7.1 Channel High Definition Audio
Audio	Features	Audio Shielding, Premium Audio Capacitors, Dedicated PCB Layers, De-pop Circuit
Networking & Connectivity	LAN	1 x Realtek 2.5Gb Ethernet (TUF LANGuard)
Networking & Connectivity	Wireless	Wi-Fi 6 (802.11ax), Bluetooth v5.2

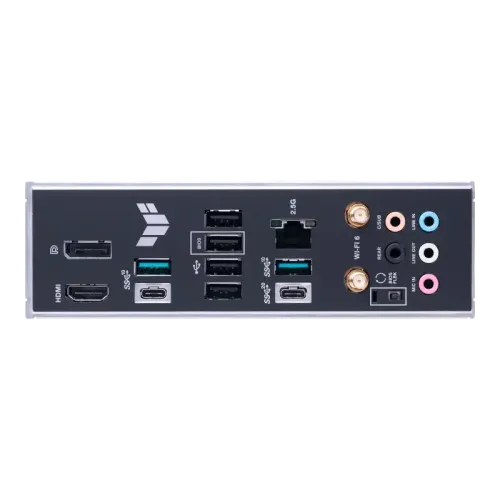

Rear I/O Ports	USB Ports	Total 8: • 1 x USB 3.2 Gen 2x2 (Type-C) • 3 x USB 3.2 Gen 2 (2x Type-A, 1x Type-C) • 4 x USB 2.0 (Type-A)
	Video Output	1 x DisplayPort (1.4, 8K@60Hz) 1 x HDMI (2.1, 4K@60Hz)
	Audio	5 x Audio Jacks
	Other	BIOS FlashBack Button
Internal Headers & Connectors	USB Headers	Total 7 ports via headers: • 1 x USB 3.2 Gen 1 connector (supports Type-C) • 1 x USB 3.2 Gen 1 header (2 ports) • 2 x USB 2.0 headers (4 ports)
	Fan/Pump Headers	1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
	Power Connectors	1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V
	RGB Headers	1 x Aura RGB, 3 x Addressable Gen 2
	Miscellaneous	Front Panel Audio, COM Port, Thunderbolt (USB4) Header, Clear CMOS Header
Special Features	TUF Protection	DIGI+ VRM, TUF LANGuard, ESD Guards, Overvoltage Protection, Stainless-Steel Back I/O
	ASUS Q-Design	Q-LED (Debug), M.2 Q-Latch, Q-DIMM, Pre-mounted I/O Shield
	ASUS Thermal Solution	VRM Heatsink, M.2 Heatsink
	ASUS EZ DIY	BIOS FlashBack
Software & Bundled	Software	Armoury Crate, AI Suite 3, DTS Audio, Norton Trial, WinRAR
Warranty	Manufacturing Warranty	3 Years

Description

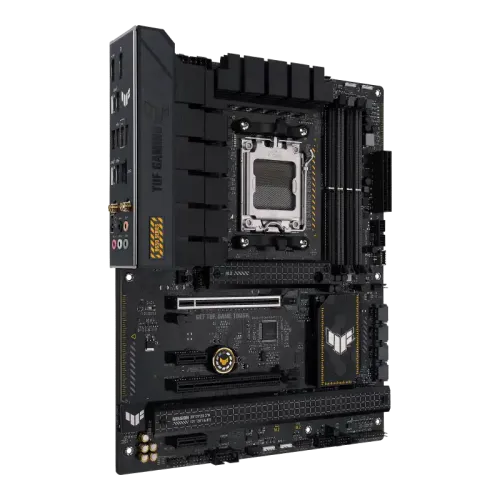

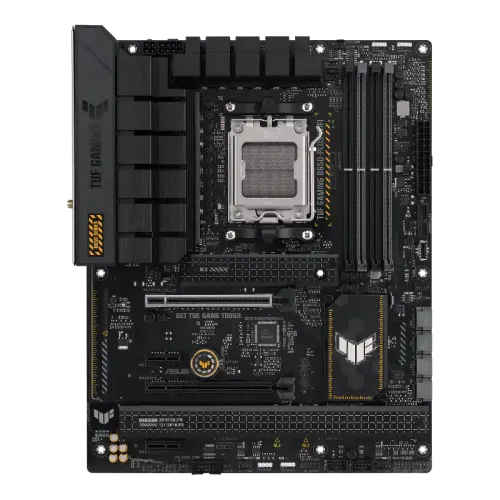

Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard

The Asus TUF GAMING B650-PLUS WIFI Motherboard takes all the essential elements of the latest AMD Ryzen 8000 & 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that define the TUF GAMING series.
