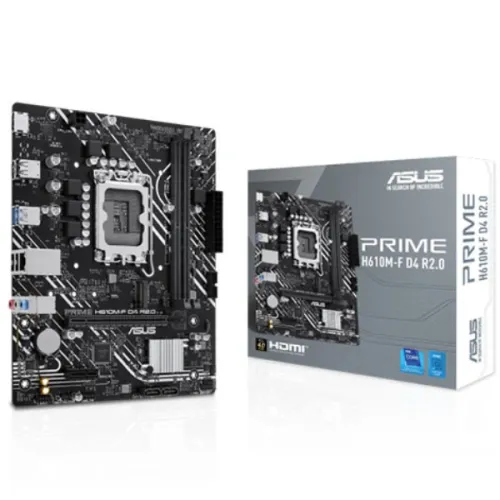

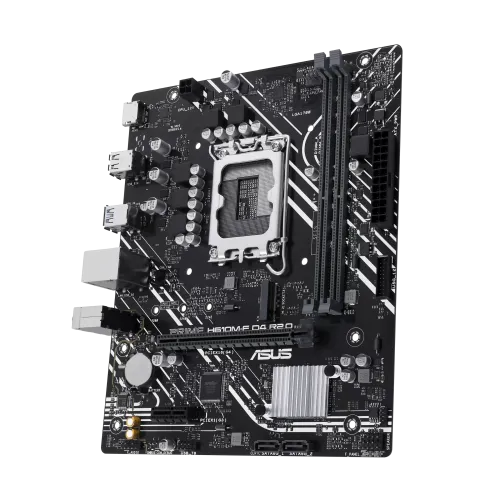

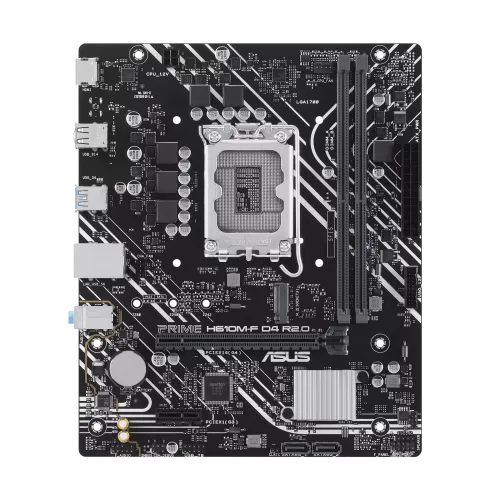

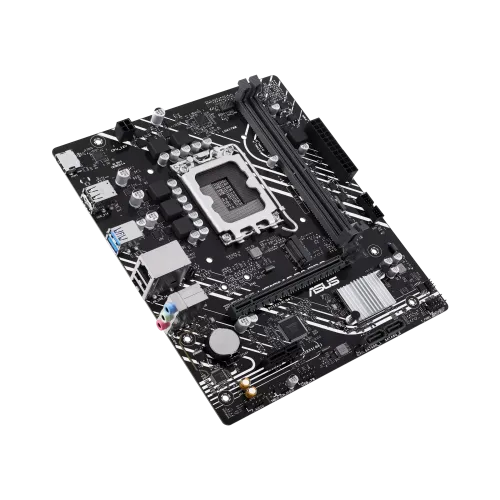

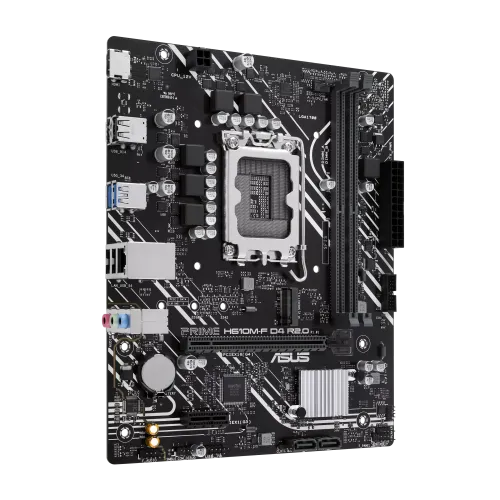

ASUS PRIME H610M-F D4 R2.0 DDR4 Intel Motherboard
Exclusive of all taxes
Product Details
Key Features
Model: PRIME H610M-F D4 R2.0
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 64GB, DDR4
Graphics Output: 1x HDMI
Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet
Specification
|
Model |
ASUS H610 Motherboard |
|
CPU Support |
Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron (LGA1700) |
|
Max CPU TDP |
65W |
|
Chipset |
Intel H610 |
|
Form Factor |
Micro ATX (22.6cm x 19.5cm) |
|
Memory Type |
DDR4 |
|
Memory Slots |
2 x DIMM |
|
Max Memory |
64GB |
|
Memory Speed |
Up to 3200MHz |
|
PCIe x16 Slot |
1 x PCIe 4.0 x16 |
|
PCIe x1 Slot |
1 x PCIe 3.0 x1 |
|
M.2 Slot |
1 x PCIe 3.0 x4 |
|
SATA Ports |
2 x SATA 6Gb/s |
|
Audio |
Realtek 7.1 Channel HD Audio |
|
Ethernet |
Realtek Gigabit Ethernet |
|
Wireless |
No |
|
Video Output |
HDMI 2.1 (4K@60Hz) |
|

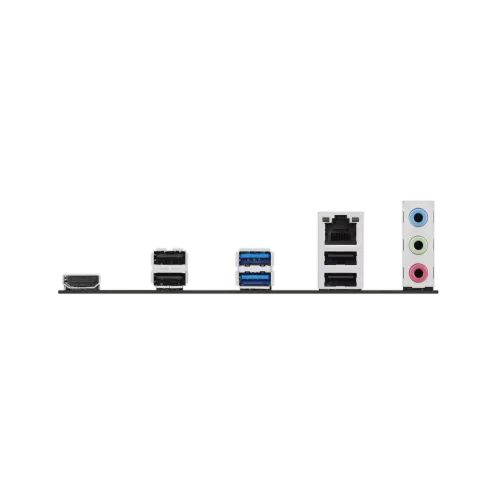

USB Ports |
2x USB 5Gbps, 4x USB 2.0 (back panel) + 2x USB 5Gbps, 2x USB 2.0 (internal) |
|
Internal Headers |
1x CPU Fan, 1x Chassis Fan, 1x USB 3.2, 1x USB 2.0 |
|
Special Features |
DIGI+ VRM, LANGuard, Q-LED Core |
|
Bundled Software |
Armoury Crate, AI Suite 3, Norton 360 Trial |
|
Warranty |
3 years |
Description
ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard
The ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX motherboard is a powerful option that supports 14th, 13th, and 12th Generation Intel processors, including Pentium Gold and Celeron variants. It operates efficiently for daily computing and multitasking because of its Intel H610 chipset and support for Intel Turbo Boost technology. With speeds of up to 3200 MT/s and Intel Extreme Memory Profile for optimal memory performance, this motherboard can accommodate up to 64GB of DDR4 memory spread across two DIMM slots. Compatibility with contemporary peripherals is ensured by the ASUS PRIME H610M-F D4 R2.0 LGA1700 motherboard's PCIe 4.0 x16 graphics slot and PCIe 3.0 x1 expansion port. The ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX motherboard has two SATA 6Gb/s ports for flexible configuration options and a 32Gbps M.2 slot with PCIe 3.0 x4 compatibility for storage. Realtek 1Gb Ethernet and several USB alternatives, such as two USB 5Gbps Type-A ports and six USB 2.0 ports spread across the front and rear panels, provide dependable connectivity. High-end screens can benefit from the HDMI 2.1 port's support for 4K images at 60Hz. Realtek 7.1 Surround Sound improves audio by using high-quality capacitors and audio shielding to provide rich, immersive sound. ASUS 5X Protection III, which includes SafeSlot Core, LANGuard, DIGI+ VRM, and overvoltage protection, is installed on the ASUS PRIME H610M-F D4 R2.0 mATX motherboard to ensure stability and longevity. While ASUS Q-Design features like Q-DIMM and Q-Slot make installation easier, an aluminum heatsink offers complete cooling. Compact constructions are compatible with the micro-ATX form factor, while ASUS software tools like Armoury Crate and AI Suite 3 improve usability. Supporting both Windows 11 and Windows 10 64-bit, the ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX motherboard is a great option for systems that need to be space-efficient, feature-rich, and efficient.
