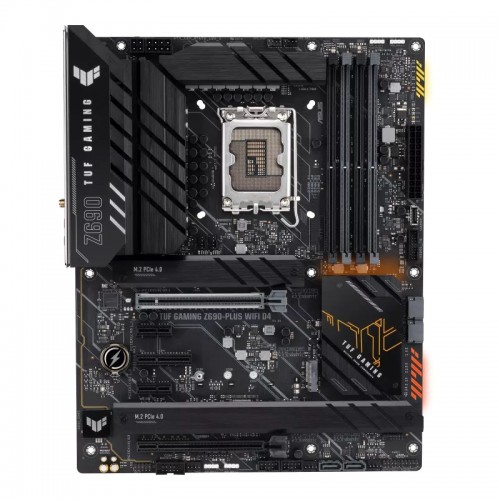

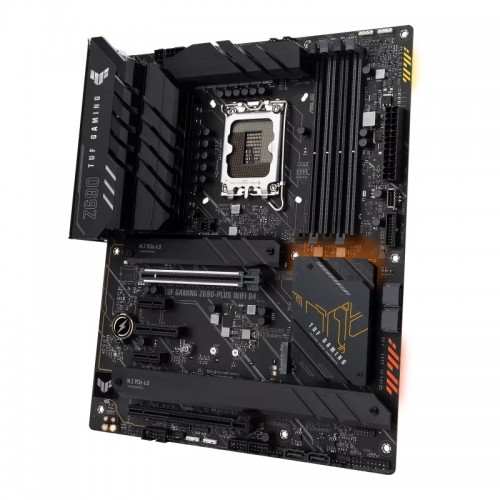

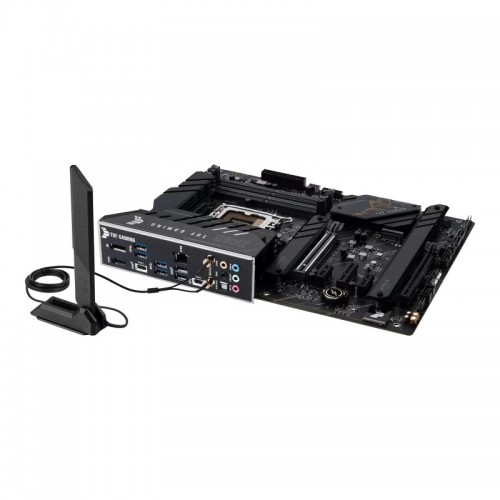

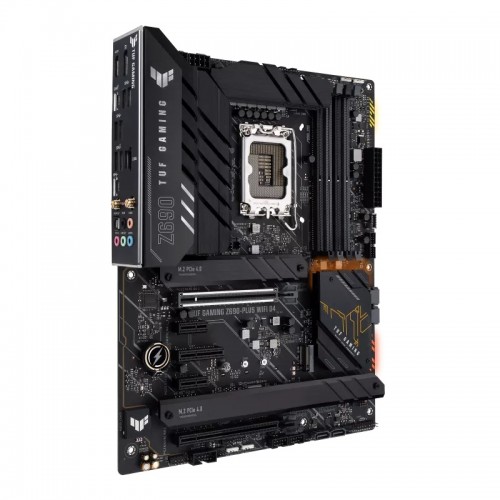

Asus TUF Gaming Z690-Plus WIFI D4 ATX Motherboard

Genuine Product Fast Delivery Easy Returns

Out Of Stock

Specification

Basic Information	Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron Processors
	Chipset	Intel Z690
	Form Factor	ATX (30.5 cm x 24.4 cm)
	BIOS	192 Mb Flash ROM, UEFI AMI BIOS
Memory	Type & Slots	4 x DDR4 DIMM Slots
	Supported Memory	DDR4 5333(OC) and below, up to 128GB
	Features	Dual Channel, Intel XMP, OptiMem II, Non-ECC Un-buffered
Expansion Slots	PCIe x16 Slots (from CPU)	1 x PCIe 5.0 x16
Expansion Slots	PCIe Slots (from Chipset)	1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x4, 2 x PCIe 3.0 x1
Storage	M.2 Slots (Total 4)	M.2_1 (CPU): PCIe 4.0 x4 (2242/2260/2280/22110) M.2_2 (Chipset): PCIe 4.0 x4 & SATA (2242/2260/2280) M.2_3 (Chipset): PCIe 4.0 x4 (2242/2260/2280/22110) M.2_4 (Chipset): PCIe 4.0 x4 (2242/2260/2280)
	SATA Ports	4 x SATA 6Gb/s
	RAID Support	Intel RST for NVMe RAID 0/1/5 & SATA RAID 0/1/5/10
Audio	Codec	Realtek 7.1 Channel High Definition Audio
Audio	Features	Audio Shielding, Optical S/PDIF Out, Premium Audio Capacitors, Audio Cover
Networking & Connectivity	LAN	1 x Intel 2.5Gb Ethernet (TUF LANGuard)
Networking & Connectivity	Wireless	Wi-Fi 6 (802.11ax), Bluetooth v5.2

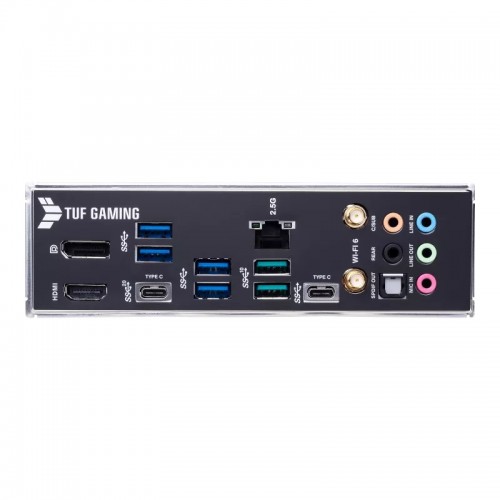

Rear I/O Ports	USB Ports	Total 8: • 1 x USB 3.2 Gen 2x2 (Type-C) • 2 x USB 3.2 Gen 2 (Type-A) • 5 x USB 3.2 Gen 1 (4x Type-A + 1x Type-C)
	Video Output	1 x DisplayPort (1.4, 4K@60Hz) 1 x HDMI (2.1, 4K@60Hz)
	Audio	5 x Audio Jacks + Optical S/PDIF Out
Internal Headers & Connectors	USB Headers	Total 7 ports via headers: • 1 x USB 3.2 Gen 2 connector (Type-C) • 1 x USB 3.2 Gen 1 header (2 ports) • 2 x USB 2.0 headers (4 ports)
	Fan/Pump Headers	1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
	Power Connectors	1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V
	RGB Headers	1 x AURA RGB, 3 x Addressable Gen 2
	Miscellaneous	Front Panel Audio, COM Port, Thunderbolt Header, Clear CMOS
Special Features	TUF Protection	DIGI+ VRM, TUF LANGuard, ESD Guards, Overvoltage Protection, Stainless-Steel Back I/O
	ASUS Q-Design	Q-LED (Debug), M.2 Q-Latch, Q-DIMM, Pre-mounted I/O Shield
	ASUS Thermal Solution	VRM Heatsink, M.2 Heatsink
	ASUS EZ DIY	BIOS FlashBack, SafeDIMM, CPU Socket Lever Protector
Software & Bundled	Software	Armoury Crate, AI Suite 3, DTS Audio, Norton Trial, WinRAR
Warranty	Manufacturing Warranty	3 Years

Description

Asus TUF Gaming Z690-Plus WIFI D4 ATX Motherboard

The Asus TUF Gaming Z690-Plus D4 Motherboard features Intel LGA 1700 socket Ready for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th-generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery. It features an enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate. The Asus TUF Gaming Z690-Plus D4 is supported with PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. Asus TUF Gaming Z690-Plus D4 offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. The Asus TUF Gaming Z690-Plus D4 comes with 3 years of warranty.
