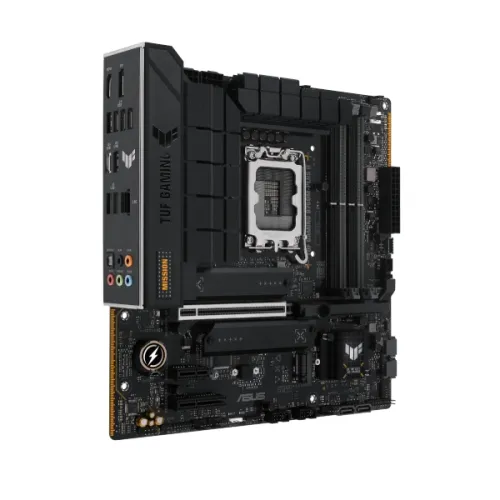

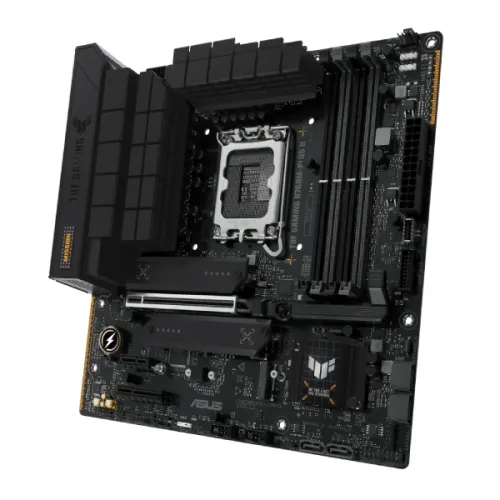

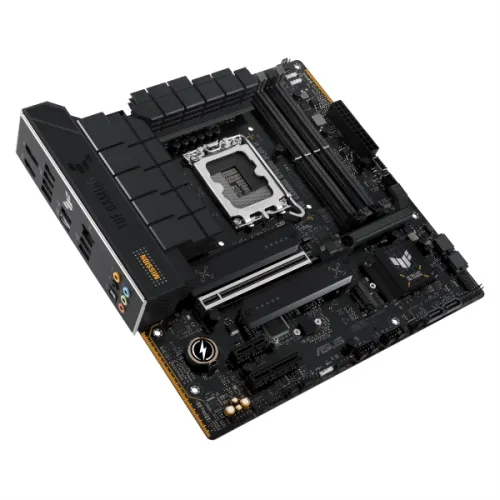

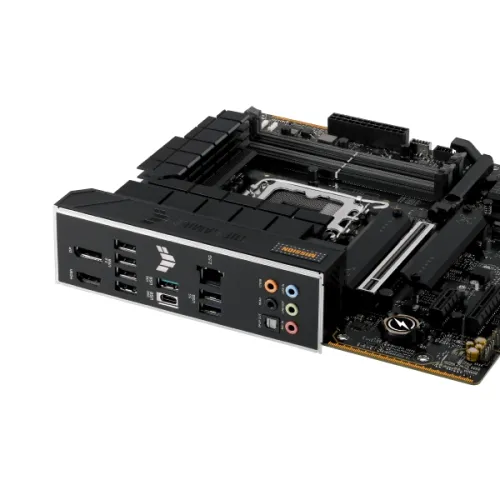

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard
Exclusive of all taxes
Product Details
Key Features
- Model: TUF GAMING B760M-PLUS II
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB, Support up to 7800+(OC)
- Graphics Output: 1 x DisplayPort, 1 x HDMI port
- Features: 3x M.2 Slot, 1x Realtek 2.5Gb Ethernet
Specification
|
Model |
ASUS TUF GAMING B760 Micro-ATX Motherboard |
|
CPU Support |
Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron (LGA1700) |
|
Chipset |
Intel B760 |
|
Form Factor |
Micro-ATX (24.4cm x 24.4cm) |
|
Memory Type |
DDR5 |
|
Memory Slots |
4 x DIMM |
|
Max Memory |
192GB |
|
Memory Speed |
Up to DDR5 7800+(OC) |
|
PCIe x16 Slot |
1 x PCIe 5.0 x16 |
|
PCIe x4 Slot |
1 x PCIe 4.0 x4 |
|
PCIe x1 Slot |
1 x PCIe 3.0 x1 |
|
M.2 Slots |
3 total (2x PCIe 4.0 x4, 1x PCIe 4.0 x2) |
|
SATA Ports |
4 x SATA 6Gb/s |
|
RAID Support |
RAID 0/1/5/10 (SATA only) |
|
Audio |
Realtek 7.1 Channel HD Audio + Optical S/PDIF Out |
|
Ethernet |
Realtek 2.5GbE (TUF LANGuard) |
|
Wireless |
No |
|
Video Outputs |
DisplayPort 1.4, HDMI 2.1 (both 4K@60Hz) |
|
USB Ports |
1x USB-C 20Gbps, 1x USB-A 10Gbps, 2x USB-A 5Gbps, 4x USB 2.0 (back panel) + 1x USB-C 10Gbps, 2x USB 5Gbps, 5x USB 2.0 (internal) |
|
Internal Headers |
5x fan/pump, 3x Addressable RGB, Thunderbolt header |
|
Power Connectors |
24-pin + 2x 8-pin 12V |
|
Special Features |
PCIe Slot Q-Release, M.2 Q-Latch, Q-LED diagnostics |
|
Bundled Software |
Armoury Crate, AI Suite 3, Norton 360 Trial |
|
Warranty |
3 years |
Description
Asus PRIME B760M-F mATX Motherboard
The ASUS PRIME B760M-F is a high-performance micro-ATX motherboard designed to accommodate Intel's 12th, 13th, and 14th generation processors with its Intel B760 chipset. Despite its compact size, it offers an array of features ideal for gamers, content creators, and professionals who need a reliable and powerful system. Equipped with PCIe 4.0 support, the motherboard ensures faster data transfer speeds, and its two PCIe 4.0 M.2 slots provide ultra-fast storage options, making it perfect for users looking for rapid boot times and seamless performance. Supporting the latest DDR5 RAM, the ASUS PRIME B760M-F future-proofs your system for enhanced responsiveness. The motherboard includes Realtek 1Gb Ethernet for stable and reliable network connectivity, ensuring smooth performance in gaming, streaming, and multitasking. Thermal management is optimized with a PCH heatsink, hybrid fan headers, and ASUS Fan Xpert 2+ to keep your system cool even during heavy workloads. For aesthetic customization, the board features Aura Sync RGB lighting with onboard addressable Gen 2 headers, allowing easy synchronization with other Aura Sync-capable components. The motherboard comes with a two-way AI noise cancelation feature, which significantly reduces background noise during voice chats, making it a great choice for gaming or video conferencing. With its robust feature set and future-ready capabilities, the ASUS PRIME B760M-F is perfect for those looking to build a powerful AI-powered PC, gaming setup, or professional workstation.
