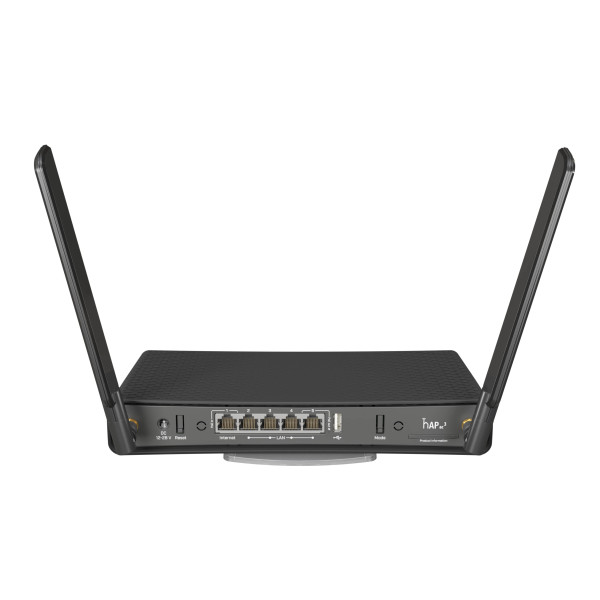

MicroTik RouterBOARD RBD53iG-5HacD2HnD (hAP ac³) Dual-band wireless Router
Contact us for pricing
Product Details
Key Features
Dual-band wireless connectivity: Experience seamless connectivity with the RBD53iG-5HacD2HnD's dual-band wireless capabilities, supporting speeds of up to 867 Mbit/s on the 5 GHz band.
High-performance CPU: The IPQ-4019 CPU delivers exceptional performance, with a nominal frequency of 448-896 MHz and 4 CPU cores.
Wireless 2.4 GHz coverage: The RBD53iG-5HacD2HnD offers reliable wireless 2.4 GHz coverage, with a max data rate of 300 Mbit/s and 2 chains.
PoE support: Enjoy flexible powering options with the RBD53iG-5HacD2HnD's support for passive PoE, with a max power consumption of 30 W.
Compact design: The RBD53iG-5HacD2HnD boasts a compact design, measuring 251 x 129 x 39 mm.
Robust storage: The RBD53iG-5HacD2HnD features a robust storage solution, with 128 MB of storage size and NAND storage type.
Wireless 5 GHz generation: Experience the latest wireless 5 GHz generation with the RBD53iG-5HacD2HnD, supporting speeds of up to 867 Mbit/s.
Multi-gigabit Ethernet ports: The RBD53iG-5HacD2HnD offers 5 multi-gigabit Ethernet ports, supporting speeds of up to 1000 Mbps.
USB connectivity: Enjoy convenient USB connectivity with the RBD53iG-5HacD2HnD's single USB port, supporting speeds of up to 480 Mbps.
Robust cooling system: The RBD53iG-5HacD2HnD features a robust cooling system, with a passive cooling type and a max ambient temperature of 70°C.
High MTBF: Enjoy exceptional reliability with the RBD53iG-5HacD2HnD's high MTBF of approximately 200,000 hours at 25°C.
Wireless 2.4 GHz standards: The RBD53iG-5HacD2HnD supports the latest wireless 2.4 GHz standards, including 802.11b/g/n.
Wireless 5 GHz standards: Experience the latest wireless 5 GHz standards with the RBD53iG-5HacD2HnD, supporting 802.11a/n/ac speeds of up to 867 Mbit/s.
Robust security features: The RBD53iG-5HacD2HnD features robust security features, including IP20 certification and CE, FCC, IC, EAC, and ROHS compliance.
Product code | RBD53iG-5HacD2HnD |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | 448-896 (auto) MHz |
CPU Threads count | 4 |
Switch chip model | IPQ-4019 |
Dimensions | 251 x 129 x 39 mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Wireless capabilities | Wireless 2.4 GHz Max data rate: 300 Mbit/s |
Wireless 2.4 GHz Number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 3 |
Wireless 2.4 GHz chip model | IPQ-4019 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz Number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 5.5 |
Wireless 5 GHz chip model | IPQ-4019 |
Wireless 5 GHz generation | Wi-Fi 5 |
WiFi speed | AC1200 |
Ethernet | 10/100/1000 Ethernet ports |
Number of 1G Ethernet ports with PoE-out | 1 |
Number of 1G Ethernet ports | 5 |
Peripherals | Number of USB ports: 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Powering | Number of DC inputs: 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-28 V |
Max power consumption | 30 W |
Max power consumption without attachments | 12 W |
PoE in | Passive PoE |
PoE in input Voltage | 18-28 V |
PoE-out | PoE-out ports: Eth5 |
PoE out | Passive PoE |
Low voltage PoE-Out current limit | 0.5 A |
Max total out (A) | 0.5 A |
Certification & Approvals | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
Other | Mode button: Yes |
Description
MicroTik RouterBOARD RBD53iG-5HacD2HnD (hAP ac³) Dual-band wireless Access Point
Key Features & Benefits:
- Dual-band wireless connectivity: Experience seamless connectivity with the RBD53iG-5HacD2HnD's dual-band wireless capabilities, supporting speeds of up to 867 Mbit/s on the 5 GHz band.
- High-performance CPU: The IPQ-4019 CPU delivers exceptional performance, with a nominal frequency of 448-896 MHz and 4 CPU cores.
- Wireless 2.4 GHz coverage: The RBD53iG-5HacD2HnD offers reliable wireless 2.4 GHz coverage, with a max data rate of 300 Mbit/s and 2 chains.
- PoE support: Enjoy flexible powering options with the RBD53iG-5HacD2HnD's support for passive PoE, with a max power consumption of 30 W.
- Compact design: The RBD53iG-5HacD2HnD boasts a compact design, measuring 251 x 129 x 39 mm.
- Robust storage: The RBD53iG-5HacD2HnD features a robust storage solution, with 128 MB of storage size and NAND storage type.
- Wireless 5 GHz generation: Experience the latest wireless 5 GHz generation with the RBD53iG-5HacD2HnD, supporting speeds of up to 867 Mbit/s.
- Multi-gigabit Ethernet ports: The RBD53iG-5HacD2HnD offers 5 multi-gigabit Ethernet ports, supporting speeds of up to 1000 Mbps.
- USB connectivity: Enjoy convenient USB connectivity with the RBD53iG-5HacD2HnD's single USB port, supporting speeds of up to 480 Mbps.
- Robust cooling system: The RBD53iG-5HacD2HnD features a robust cooling system, with a passive cooling type and a max ambient temperature of 70°C.
- High MTBF: Enjoy exceptional reliability with the RBD53iG-5HacD2HnD's high MTBF of approximately 200,000 hours at 25°C.
- Wireless 2.4 GHz standards: The RBD53iG-5HacD2HnD supports the latest wireless 2.4 GHz standards, including 802.11b/g/n.
- Wireless 5 GHz standards: Experience the latest wireless 5 GHz standards with the RBD53iG-5HacD2HnD, supporting 802.11a/n/ac speeds of up to 867 Mbit/s.
- Robust security features: The RBD53iG-5HacD2HnD features robust security features, including IP20 certification and CE, FCC, IC, EAC, and ROHS compliance.
Ideal For:
- Home users seeking a reliable wireless router
- Small businesses requiring a high-performance wireless solution
- Gaming enthusiasts demanding low latency and high speeds
- Streaming enthusiasts requiring robust wireless connectivity
- Remote workers needing a reliable and secure wireless connection
- Businesses with multiple devices requiring a high-capacity wireless solution
- Users seeking a compact and energy-efficient wireless router
Summary:
The RBD53iG-5HacD2HnD is a high-performance wireless router designed for home and small business users. With its dual-band wireless capabilities, high-performance CPU, and robust storage solution, this router delivers exceptional speeds and reliability. Featuring 5 multi-gigabit Ethernet ports, a single USB port, and a compact design, the RBD53iG-5HacD2HnD is the perfect solution for users seeking a reliable and high-performance wireless connection. Available now at Revolution Technology BD.
