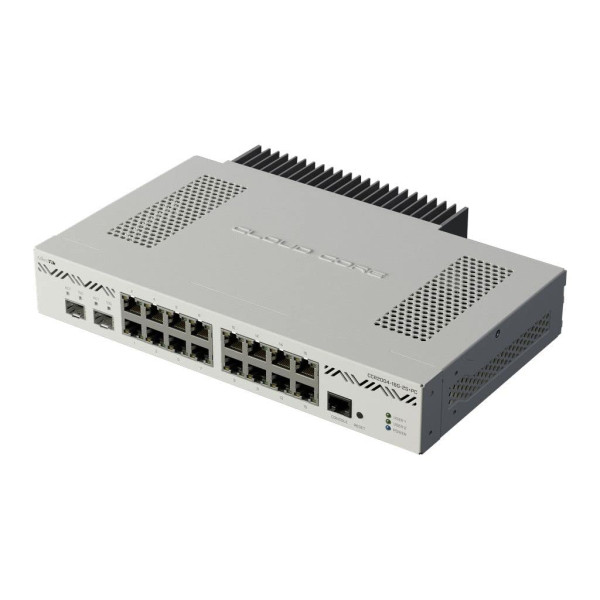

MikroTik Cloud Core Router CCR2004-16G-2S+PC Ethernet Router with Passive Cooling

Genuine Product Fast Delivery Easy Returns

Key Features

High-performance networking: The MikroTik Cloud Core Router CCR2004-16G-2S+PC offers 16 10/100/1000 Ethernet ports and 2 SFP+ ports for high-speed connectivity.

Advanced CPU capabilities: This router features an AL32400 CPU with 4 cores and 1200 MHz nominal frequency for efficient processing and handling of network traffic.

Passive cooling: The CCR2004-16G-2S+PC uses passive cooling, eliminating the need for fans and reducing noise levels.

Long-term reliability: With an MTBF of approximately 200,000 hours at 25°C, this router is designed to provide long-term reliability and minimize downtime.

Robust security features: The MikroTik Cloud Core Router CCR2004-16G-2S+PC includes robust security features, such as RouterOS v7, to protect your network from threats.

Compact design: The CCR2004-16G-2S+PC has a compact design, measuring 272 x 195 x 44 mm, making it perfect for small to medium-sized businesses.

Powerful processing: This router features a powerful AL32400 CPU with 4 cores and 1200 MHz nominal frequency, making it ideal for demanding network applications.

Redundant power supply: The CCR2004-16G-2S+PC has 2 DC inputs, allowing for redundant power supply and minimizing downtime in case of power failures.

Wide temperature range: This router can operate in a wide temperature range of -20°C to 60°C, making it suitable for various environments.

High-capacity storage: The CCR2004-16G-2S+PC has 4 GB of RAM and 128 MB of storage, providing ample space for storing network configurations and data.

Advanced monitoring capabilities: This router includes CPU temperature monitor, PCB temperature monitor, and voltage monitor, allowing for real-time monitoring of system performance.

Compliance with international standards: The MikroTik Cloud Core Router CCR2004-16G-2S+PC meets international standards for safety and environmental protection, including CE, EAC, and ROHS certifications.

Specification

Product code	CCR2004-16G-2S+PC
Architecture	ARM 64bit
CPU	AL32400
CPU core count	4
CPU nominal frequency	1200 MHz
CPU Threads count	4
Switch chip model	88E6191
Dimensions	272 x 195 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
Number of DC inputs	2 (DC jack, 2-pin terminal)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Max power consumption	36 W
Max power consumption without attachments	30 W
Cooling type	Passive
Ethernet	10/100/1000 Ethernet ports
Number of Ethernet ports	16
Fiber	SFP+ ports
Number of SFP+ ports	2
Peripherals	Serial console port
Serial console port type	RJ45
Number of USB ports	1
Other	CPU temperature monitor
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals	CE, EAC, ROHS
IP	IP 20

Description

MikroTik Cloud Core Router CCR2004-16G-2S+PC Ethernet Router with Passive Cooling

Key Features & Benefits:

High-performance networking: The MikroTik Cloud Core Router CCR2004-16G-2S+PC offers 16 10/100/1000 Ethernet ports and 2 SFP+ ports for high-speed connectivity.
Advanced CPU capabilities: This router features an AL32400 CPU with 4 cores and 1200 MHz nominal frequency for efficient processing and handling of network traffic.
Passive cooling: The CCR2004-16G-2S+PC uses passive cooling, eliminating the need for fans and reducing noise levels.
Long-term reliability: With an MTBF of approximately 200,000 hours at 25°C, this router is designed to provide long-term reliability and minimize downtime.
Robust security features: The MikroTik Cloud Core Router CCR2004-16G-2S+PC includes robust security features, such as RouterOS v7, to protect your network from threats.
Compact design: The CCR2004-16G-2S+PC has a compact design, measuring 272 x 195 x 44 mm, making it perfect for small to medium-sized businesses.
Powerful processing: This router features a powerful AL32400 CPU with 4 cores and 1200 MHz nominal frequency, making it ideal for demanding network applications.
Redundant power supply: The CCR2004-16G-2S+PC has 2 DC inputs, allowing for redundant power supply and minimizing downtime in case of power failures.
Wide temperature range: This router can operate in a wide temperature range of -20°C to 60°C, making it suitable for various environments.
High-capacity storage: The CCR2004-16G-2S+PC has 4 GB of RAM and 128 MB of storage, providing ample space for storing network configurations and data.
Advanced monitoring capabilities: This router includes CPU temperature monitor, PCB temperature monitor, and voltage monitor, allowing for real-time monitoring of system performance.
Compliance with international standards: The MikroTik Cloud Core Router CCR2004-16G-2S+PC meets international standards for safety and environmental protection, including CE, EAC, and ROHS certifications.

Ideal For:

Small to medium-sized businesses
Enterprises with high-speed networking requirements
Data centers and cloud service providers
Network administrators seeking advanced security features
Users who require long-term reliability and minimal downtime
Businesses with high-capacity storage needs
Organizations operating in various environments with wide temperature ranges

Summary:

The MikroTik Cloud Core Router CCR2004-16G-2S+PC is a high-performance networking device designed for small to medium-sized businesses and enterprises with high-speed networking requirements. With its advanced CPU capabilities, passive cooling, and robust security features, this router provides long-term reliability and minimizes downtime. It is available at Revolution Technology BD, offering a compact design and high-capacity storage for efficient network operations.
