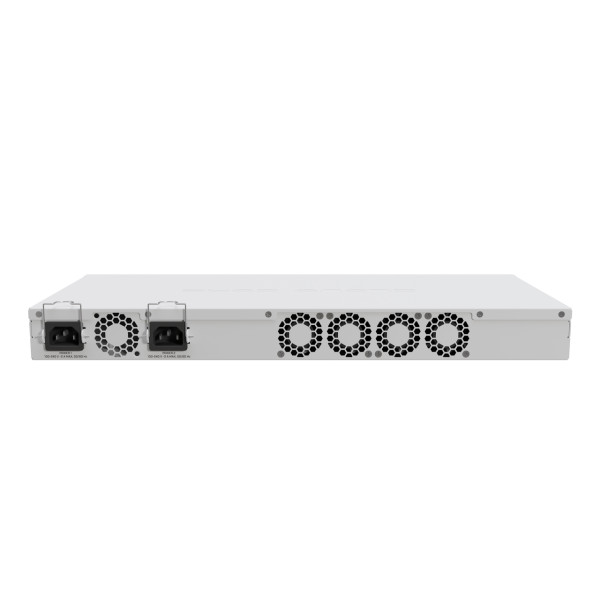

MikroTik Cloud Core Router CCR2116-12G-4S+ Ethernet Router

Genuine Product Fast Delivery Easy Returns

Key Features

High-performance networking: The CCR2116-12G-4S+ features a powerful AL73400 CPU with 16 cores and 16 threads, ensuring seamless performance even in high-traffic environments.

Advanced routing capabilities: With RouterOS v7, you can take advantage of advanced routing features, including BGP, OSPF, and MPLS.

Robust security features: The CCR2116-12G-4S+ includes robust security features, such as firewall rules, VPN support, and intrusion detection.

Scalable and flexible design: The router's modular design allows for easy upgrades and expansions, making it an ideal choice for growing networks.

High-speed data transfer: With 10/100/1000 Ethernet ports and SFP+ ports, you can achieve high-speed data transfer rates of up to 10 Gbps.

Long-term reliability: The CCR2116-12G-4S+ boasts an MTBF of approximately 200,000 hours at 25°C, ensuring long-term reliability and minimal downtime.

Easy management and monitoring: The router's intuitive web interface and CLI make it easy to manage and monitor your network, even for users with limited technical expertise.

Wide operating temperature range: The CCR2116-12G-4S+ can operate in temperatures ranging from -20°C to 60°C, making it suitable for deployment in a variety of environments.

Advanced power management: The router's power consumption is optimized, with a maximum power consumption of 83 W and a maximum consumption without attachments of 60 W.

Redundant power supply: The CCR2116-12G-4S+ features dual PSU slots, ensuring that your network remains operational even in the event of a power failure.

Enhanced cooling system: The router's 4-fan cooling system ensures optimal airflow and heat dissipation, even in high-temperature environments.

Advanced temperature monitoring: The CCR2116-12G-4S+ includes CPU temperature and PCB temperature monitoring, allowing you to keep a close eye on your network's thermal health.

Specification

Product code	CCR2116-12G-4S+
Architecture	ARM 64bit
CPU	AL73400
CPU core count	16
CPU nominal frequency	2000 MHz
CPU Threads count	16
Switch chip model	98DX3255
Dimensions	443 x 199 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	16 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
Number of AC inputs	2
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	47-63
Max power consumption	83 W
Max power consumption without attachments	60 W
Cooling type	4 fans
Ethernet	10/100/1000 Ethernet ports
Number of Ethernet ports	13
Fiber	SFP+ ports
Number of SFP+ ports	4
Serial console port	RJ45
Number of M.2 slots	1
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes
Certification & Approvals	CE, EAC, ROHS

Description

MikroTik Cloud Core Router CCR2116-12G-4S+ Ethernet Router

Key Features & Benefits:

High-performance networking: The CCR2116-12G-4S+ features a powerful AL73400 CPU with 16 cores and 16 threads, ensuring seamless performance even in high-traffic environments.
Advanced routing capabilities: With RouterOS v7, you can take advantage of advanced routing features, including BGP, OSPF, and MPLS.
Robust security features: The CCR2116-12G-4S+ includes robust security features, such as firewall rules, VPN support, and intrusion detection.
Scalable and flexible design: The router's modular design allows for easy upgrades and expansions, making it an ideal choice for growing networks.
High-speed data transfer: With 10/100/1000 Ethernet ports and SFP+ ports, you can achieve high-speed data transfer rates of up to 10 Gbps.
Long-term reliability: The CCR2116-12G-4S+ boasts an MTBF of approximately 200,000 hours at 25°C, ensuring long-term reliability and minimal downtime.
Easy management and monitoring: The router's intuitive web interface and CLI make it easy to manage and monitor your network, even for users with limited technical expertise.
Wide operating temperature range: The CCR2116-12G-4S+ can operate in temperatures ranging from -20°C to 60°C, making it suitable for deployment in a variety of environments.
Advanced power management: The router's power consumption is optimized, with a maximum power consumption of 83 W and a maximum consumption without attachments of 60 W.
Redundant power supply: The CCR2116-12G-4S+ features dual PSU slots, ensuring that your network remains operational even in the event of a power failure.
Enhanced cooling system: The router's 4-fan cooling system ensures optimal airflow and heat dissipation, even in high-temperature environments.
Advanced temperature monitoring: The CCR2116-12G-4S+ includes CPU temperature and PCB temperature monitoring, allowing you to keep a close eye on your network's thermal health.

Ideal For:

Large enterprises
Service providers
Data centers
Cloud infrastructure
High-traffic networks
Mission-critical applications
Network administrators
IT professionals

Summary:

The MikroTik Cloud Core Router CCR2116-12G-4S+ is a high-performance networking solution designed for large enterprises, service providers, and data centers. With its powerful CPU, advanced routing capabilities, and robust security features, this router is ideal for high-traffic networks and mission-critical applications. Available at Revolution Technology BD, this router is a reliable choice for any organization looking to upgrade their network infrastructure.
