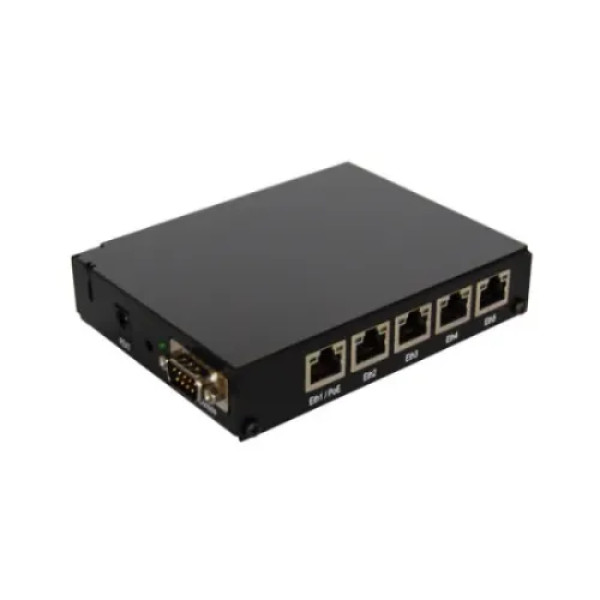

MikroTik RouterBOARD RB450Gx4 Ethernet Router

Genuine Product Fast Delivery Easy Returns

Key Features

High-Performance Networking: The RouterBOARD RB450Gx4 features a powerful IPQ-4019 CPU, delivering fast networking speeds and efficient performance.

Robust Connectivity: With 5 x 10/100/1000 Ethernet ports, this router provides reliable and high-speed connectivity for your network.

Easy Management: The RouterBOARD RB450Gx4 comes with a user-friendly RouterOS interface, making it easy to configure and manage your network.

Power Efficiency: This router features a passive cooling system, reducing power consumption and heat generation.

Flexible Power Options: The RouterBOARD RB450Gx4 supports 3 x DC inputs, including a DC jack and PoE-IN, providing flexibility in power supply options.

Long-Lasting Performance: With an MTBF of approximately 100,000 hours at 25°C, this router is designed to provide long-lasting performance and reliability.

Compact Design: Measuring 90 x 116 mm, the RouterBOARD RB450Gx4 is compact and space-efficient, making it ideal for small to medium-sized networks.

Advanced Security: This router features a robust security system, including support for 802.3af/at PoE, providing an additional layer of protection for your network.

Easy Upgrades: The RouterBOARD RB450Gx4 supports microSD card upgrades, making it easy to expand storage capacity and add new features.

Real-Time Monitoring: This router features a built-in PCB temperature monitor and voltage monitor, providing real-time monitoring and alerting for critical system parameters.

Convenient Alerts: The RouterBOARD RB450Gx4 features a beeper, providing convenient alerts for important system events and notifications.

Compliance and Certifications: This router meets the highest standards of compliance and certification, including CE, EAC, and ROHS, ensuring safe and reliable operation in your network.

Specification

Product code	RB450Gx4
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	448-896 (auto) MHz
CPU Threads count	4
Switch chip model	IPQ-4019
Dimensions	90 x 116 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	3 (DC jack, PoE-IN)
DC jack input Voltage	10-57 V
Max power consumption	16 W
Max power consumption without attachments	4 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	12-57 V
PoE-out	PoE-out ports
PoE-out ports	Ether5
PoE out	Passive PoE
Low voltage PoE-Out current limit	500 mA
High voltage PoE-Out current limit	500 mA
Max total out (A)	500 mA
Ethernet	10/100/1000 Ethernet ports
10/100/1000 Ethernet ports	5
Peripherals	Memory card type
Memory card type	microSD
Serial console port	RS232
Other	PCB temperature monitor
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
Certification & Approvals	Certification
Certification	CE, EAC, ROHS
IP	IP00

Description

RouterBOARD RB450Gx4 Ethernet Router

Key Features & Benefits:

High-Performance Networking: The RouterBOARD RB450Gx4 features a powerful IPQ-4019 CPU, delivering fast networking speeds and efficient performance.
Robust Connectivity: With 5 x 10/100/1000 Ethernet ports, this router provides reliable and high-speed connectivity for your network.
Easy Management: The RouterBOARD RB450Gx4 comes with a user-friendly RouterOS interface, making it easy to configure and manage your network.
Power Efficiency: This router features a passive cooling system, reducing power consumption and heat generation.
Flexible Power Options: The RouterBOARD RB450Gx4 supports 3 x DC inputs, including a DC jack and PoE-IN, providing flexibility in power supply options.
Long-Lasting Performance: With an MTBF of approximately 100,000 hours at 25°C, this router is designed to provide long-lasting performance and reliability.
Compact Design: Measuring 90 x 116 mm, the RouterBOARD RB450Gx4 is compact and space-efficient, making it ideal for small to medium-sized networks.
Advanced Security: This router features a robust security system, including support for 802.3af/at PoE, providing an additional layer of protection for your network.
Easy Upgrades: The RouterBOARD RB450Gx4 supports microSD card upgrades, making it easy to expand storage capacity and add new features.
Real-Time Monitoring: This router features a built-in PCB temperature monitor and voltage monitor, providing real-time monitoring and alerting for critical system parameters.
Convenient Alerts: The RouterBOARD RB450Gx4 features a beeper, providing convenient alerts for important system events and notifications.
Compliance and Certifications: This router meets the highest standards of compliance and certification, including CE, EAC, and ROHS, ensuring safe and reliable operation in your network.

Ideal For:

Small to medium-sized businesses
Home networks
Remote offices
Branch offices
Network administrators
IT professionals
Business owners
Network enthusiasts

Summary:

The RouterBOARD RB450Gx4 is a high-performance Ethernet router designed for small to medium-sized networks. With its powerful IPQ-4019 CPU, robust connectivity options, and easy management interface, this router provides reliable and efficient performance. It is ideal for network administrators, IT professionals, and business owners looking for a secure and scalable solution for their network. Available at Revolution Technology BD.
