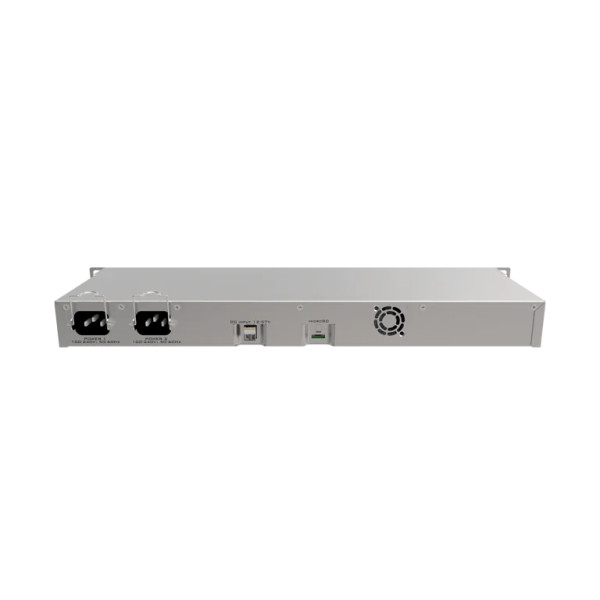

MikroTik RouterBOARD RB1100AHx4 Ethernet Router
Contact us for pricing
Product Details
Key Features
High-performance networking: The MikroTik RouterBOARD RB1100AHx4 features a powerful AL21400 CPU with 4 cores and 1.4 GHz nominal frequency, ensuring fast and efficient networking.
Advanced security features: The RB1100AHx4 comes with RouterOS, a comprehensive operating system that includes advanced security features such as firewall, VPN, and intrusion detection.
Scalable and flexible: With 13 Gigabit Ethernet ports, the RB1100AHx4 can handle high-speed data transfer and support a large number of devices, making it ideal for small to medium-sized businesses.
Easy to manage: The RB1100AHx4 features a user-friendly interface and a range of management tools, making it easy to configure and monitor the router.
High availability: The RB1100AHx4 has a Mean Time Between Failures (MTBF) of approximately 200,000 hours at 25°C, ensuring high availability and reliability.
Wide temperature range: The RB1100AHx4 can operate in a wide temperature range of -40°C to 70°C, making it suitable for use in various environments.
Powerful PoE capabilities: The RB1100AHx4 supports 802.3af/at PoE, allowing for the powering of devices such as IP phones and wireless access points.
Compact and durable design: The RB1100AHx4 has a compact and durable design, making it ideal for use in small spaces and harsh environments.
Compliance with international standards: The RB1100AHx4 meets international standards such as CE, EAC, and ROHS, ensuring compliance with regulatory requirements.
Product code | RB1100x4 |
Suggested price | $329.00 |
Architecture | ARM 32bit |
CPU | AL21400 |
CPU core count | 4 |
CPU nominal frequency | 1.4 GHz |
CPU Threads count | 4 |
Switch chip model | RTL8367 |
Dimensions | 443 x 148 x 44 mm |
RouterOS license | 6 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Number of AC inputs | 2 |
AC input range | 100-240 |
Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
2-pin terminal input Voltage | -48, 12-57 V |
Max power consumption | 20 W |
PoE in | 802.3af/at |
Cooling type | Passive |
PoE in input Voltage | 20-57 V |
Ethernet | 10/100/1000 Ethernet ports |
Number of Ethernet ports | 13 |
Peripherals | microSD |
Memory card type | microSD |
Memory Cards | 1 |
Serial console port | RS232 |
Other | Current Monitor |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Beeper | Yes |
Certification & Approvals | CE, EAC, ROHS |
IP | IP20 |
Description
MikroTik RouterBOARD RB1100AHx4 Ethernet Router
Key Features & Benefits:
- High-performance networking: The MikroTik RouterBOARD RB1100AHx4 features a powerful AL21400 CPU with 4 cores and 1.4 GHz nominal frequency, ensuring fast and efficient networking.
- Advanced security features: The RB1100AHx4 comes with RouterOS, a comprehensive operating system that includes advanced security features such as firewall, VPN, and intrusion detection.
- Scalable and flexible: With 13 Gigabit Ethernet ports, the RB1100AHx4 can handle high-speed data transfer and support a large number of devices, making it ideal for small to medium-sized businesses.
- Easy to manage: The RB1100AHx4 features a user-friendly interface and a range of management tools, making it easy to configure and monitor the router.
- High availability: The RB1100AHx4 has a Mean Time Between Failures (MTBF) of approximately 200,000 hours at 25°C, ensuring high availability and reliability.
- Wide temperature range: The RB1100AHx4 can operate in a wide temperature range of -40°C to 70°C, making it suitable for use in various environments.
- Powerful PoE capabilities: The RB1100AHx4 supports 802.3af/at PoE, allowing for the powering of devices such as IP phones and wireless access points.
- Compact and durable design: The RB1100AHx4 has a compact and durable design, making it ideal for use in small spaces and harsh environments.
- Compliance with international standards: The RB1100AHx4 meets international standards such as CE, EAC, and ROHS, ensuring compliance with regulatory requirements.
Ideal For:
- Small to medium-sized businesses
- Home networks
- Enterprise networks
- Data centers
- Schools and universities
- Hotels and hospitality
- Retail and commerce
Summary:
The MikroTik RouterBOARD RB1100AHx4 is a high-performance Ethernet router that offers advanced security features, scalable and flexible design, and easy management. With its powerful CPU, 13 Gigabit Ethernet ports, and wide temperature range, it is ideal for small to medium-sized businesses, home networks, and enterprise networks. Available at Revolution Technology BD, this router is a great option for those looking for a reliable and efficient networking solution.
