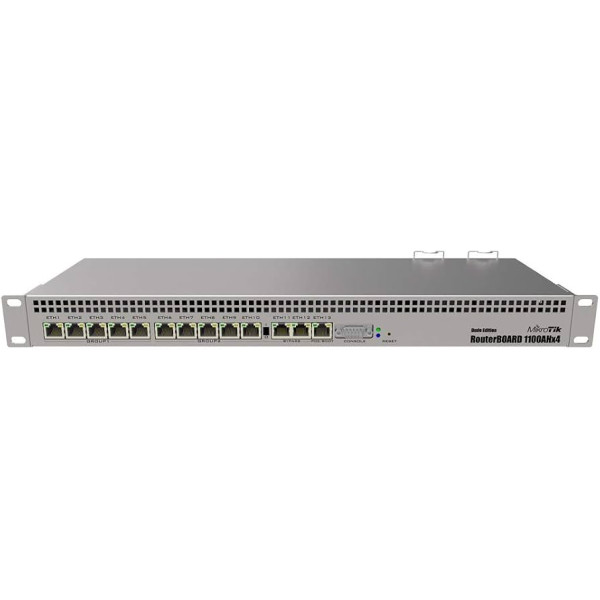

MikroTik RouterBOARD RB1100AHx4 Ethernet Router (Dude Edition)
Contact us for pricing
Product Details
Key Features
High-Performance Networking: The MikroTik RouterBOARD RB1100AHx4 features a powerful AL21400 CPU with a nominal frequency of 1.4 GHz, ensuring fast and efficient networking.
Advanced Switching Capabilities: The device comes equipped with a 13-port 10/100/1000 Ethernet switch, making it ideal for demanding network environments.
Robust Power Supply: With a max power consumption of 33 W and a passive cooling system, this router is designed to operate reliably in a variety of settings.
Enhanced Storage Options: The RB1100AHx4 includes a 60GB M.2 SSD, providing ample storage for your network data.
PoE Support: This device supports 802.3af/at PoE, making it easy to power your network devices without the need for additional power cables.
Advanced Monitoring Capabilities: The RB1100AHx4 features a current monitor, PCB temperature monitor, and voltage monitor, allowing you to keep a close eye on your network's performance.
Compact Design: Measuring 443 x 148 x 44 mm, this router is designed to fit seamlessly into your network infrastructure.
Wide Operating Temperature Range: The device can operate in temperatures ranging from -40°C to 70°C, making it suitable for use in a variety of environments.
Dual Power Inputs: With two AC inputs and two DC inputs, this router provides flexibility in terms of power supply options.
RS232 Serial Console Port: The RB1100AHx4 features an RS232 serial console port, allowing for easy configuration and management of the device.
MicroSD Support: This device supports microSD cards, providing additional storage options for your network data.
SATA Ports: The RB1100AHx4 includes two SATA3 ports, making it easy to connect storage devices to your network.
Product code | RB1100Dx4 |
Suggested price | $385.00 |
Architecture | ARM 32bit |
CPU | AL21400 |
CPU core count | 4 |
CPU nominal frequency | 1.4 GHz |
CPU Threads count | 4 |
Switch chip model | RTL8367 |
Dimensions | 443 x 148 x 44 mm |
RouterOS license | 6 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Number of AC inputs | 2 |
Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
2-pin terminal input Voltage | -48, 20-57 V |
Max power consumption | 33 W |
Max power consumption without attachments | 25 W |
PoE in | 802.3af/at |
Cooling type | Passive |
PoE in input Voltage | 20-57 V |
Ethernet | 10/100/1000 Ethernet ports |
Number of Ethernet ports | 13 |
Peripherals | Extended storage, 60GB M.2 SSD included |
Memory card type | microSD |
Memory Cards | 1 |
SATA ports | 2x SATA3 |
Serial console port | RS232 |
Number of M.2 slots | 2 |
Other | Current Monitor, PCB temperature monitor, Voltage Monitor, Beeper |
Description
MikroTik RouterBOARD RB1100AHx4 Ethernet Router (Dude Edition)
Key Features & Benefits:
- High-Performance Networking: The MikroTik RouterBOARD RB1100AHx4 features a powerful AL21400 CPU with a nominal frequency of 1.4 GHz, ensuring fast and efficient networking.
- Advanced Switching Capabilities: The device comes equipped with a 13-port 10/100/1000 Ethernet switch, making it ideal for demanding network environments.
- Robust Power Supply: With a max power consumption of 33 W and a passive cooling system, this router is designed to operate reliably in a variety of settings.
- Enhanced Storage Options: The RB1100AHx4 includes a 60GB M.2 SSD, providing ample storage for your network data.
- PoE Support: This device supports 802.3af/at PoE, making it easy to power your network devices without the need for additional power cables.
- Advanced Monitoring Capabilities: The RB1100AHx4 features a current monitor, PCB temperature monitor, and voltage monitor, allowing you to keep a close eye on your network's performance.
- Compact Design: Measuring 443 x 148 x 44 mm, this router is designed to fit seamlessly into your network infrastructure.
- Wide Operating Temperature Range: The device can operate in temperatures ranging from -40°C to 70°C, making it suitable for use in a variety of environments.
- Dual Power Inputs: With two AC inputs and two DC inputs, this router provides flexibility in terms of power supply options.
- RS232 Serial Console Port: The RB1100AHx4 features an RS232 serial console port, allowing for easy configuration and management of the device.
- MicroSD Support: This device supports microSD cards, providing additional storage options for your network data.
- SATA Ports: The RB1100AHx4 includes two SATA3 ports, making it easy to connect storage devices to your network.
Ideal For:
- Small to medium-sized businesses
- Home networks
- Gaming communities
- Video streaming services
- Cloud infrastructure providers
- Enterprise networks
- Network administrators
- IT professionals
Summary:
The MikroTik RouterBOARD RB1100AHx4 is a high-performance Ethernet router designed for demanding network environments. With its powerful CPU, advanced switching capabilities, and robust power supply, this device is ideal for small to medium-sized businesses, home networks, and gaming communities. The RB1100AHx4 also features enhanced storage options, PoE support, and advanced monitoring capabilities, making it a versatile solution for a variety of networking needs. Available now at Revolution Technology BD.
